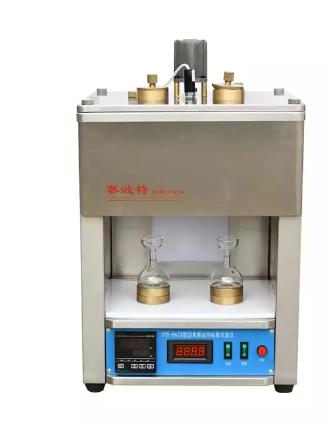

Asphalt Saybolt Viscometers Comply ASTM D88
- Description
- Inquiry
Introduction:
It is designed and produce as per T 0623 and ASTM D88 Bitumen Saybolt Viscosity Test (Saybolt Viscometer Method) in the JTJ052 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering.
It is suitable to determine the Saybolt viscosity of bitumen and bituminous mixtures under a constant temperature as per T0623.
Features
Â
This instrument is mainly comprised of water bath, bath temperature controller, parameter display calculator (calibrate coefficient, time, viscosity).
Microprocessor control technology, dual-channel sync parallel test, digital display, automatic average value calculation
The obtained test results can converted to Engler or kinematic viscosity immediately automatically
Â
Parameter:
Â
| Power supply | AC 220V±10% , 50Hz |
| Instrument type | Bench |
| Working mode | Dual-channel sync parallel test |
| Sample receiving flask volume | 60±0.05ml |
| Bath heating power | 1000W |
| Bath working temperature | RT-240.0℃ |
| Bath temperature control accuracy | ±0.1℃ |
| Test timing range | 0.0s∼999.9s |
| Timing accuracy Ambient temperature | ±0.1s ≤35℃ |
| Relative humidity | ≤85% |
Related Products

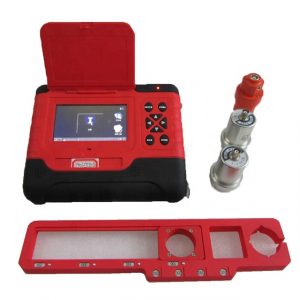

Multifunction Ultrasonic Concrete Crack Width and Depth Gauge

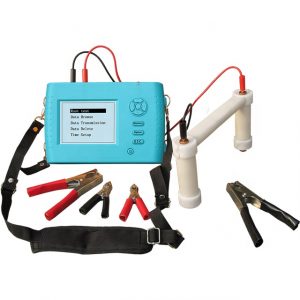

Concrete Steel Bar Rebar Location and Corrosion Detector
Concrete Steel Bar Rebar Location and Corrosion Detector Integrate the functions of rebar position test , concrete thickness test, rebar diameter test and rebar corrosion degree test into one product.

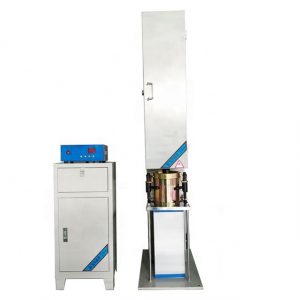

Marshall Asphalt Impact Compactor
Automatic Electric Marshall Asphalt Compaction Apparatus/ Marshall Asphalt Impact Compactor is a special equipment for specimen forming in Marshall test of asphalt mixture.
The instrument panel is equipped with preset switch, digital display, start, stop and pause buttons. The compaction instrument can automatically compact according to the preset compaction times, and automatically cut off the control circuit and turn off the motor when the set value is reached.Los Angeles Fragmentation Abrasion Machine
ASTM Standard Digital Display Los Angeles Fragmentation Abrasion Machine is for measuring aggregate toughness and abrasion resistance, crushing, degradation an disintegration.
Asphalt Bitumen Non-nuclear Electronic Density Gauge (EDG)
The EDG-2A non-nuclear asphalt density tester can quickly detect areas where road surface segregation, low density, and unevenness occur. The use of electromagnetic induction technology instead of nuclear source radiation method, low cost, high security, users do not have to worry about cumbersome environmental assessment applications, time-consuming training, and strict transportation control. The calibration is simple, the precision is high, the repeatability is good, the touch screen operation, the user can complete the relevant operation training in a short time, and master the technology of on-site quality inspection.
Multifunction Pull Off Bond Strength Tester
40 kN Multifunction Pull Off Bond Strength Tester For Concrete Testing It is mainly used to detect the strength of concrete after installation and pull out, and to inspect the bonding strength of concrete facing bricks, mosaics, and wall or ground and the strength of concrete, chemical anchor drawing test.
This instrument is a small hydraulic force-measuring device. When testing the adhesive strength of decorative bricks, the three-point counterforce support is used to generate tensile force on the adhesive material of decorative bricks. The concrete is tested by using the principle of post-installation and extraction. The force required to anchor the concrete in the concrete is used to calculate the strength of the concrete.
The instrument consists of a through-hearth jack, a hand pump, a triangular chassis, and a force measuring device. It has the characteristics of one machine and two uses, a novel structure, small size, convenient operation and complete functions.AC DC Magnetic Particle Yoke Flaw Detector
AC DC Magnetic Particle Yoke Flaw Detector has AC, DC, AC and DC dual-purpose magnetic particle flaw detector. The DC power supply is rechargeable battery, which is suitable for field operation without power supply and high-voltage inaccessible containers, bridges, pipelines and other field operations. The continuous working time of one charging can reach more than 6 hours. The AC power supply adopts ~ 220 V power supply for direct input without other instruments. It is easy to operate, simple, light weight and easy to carry.

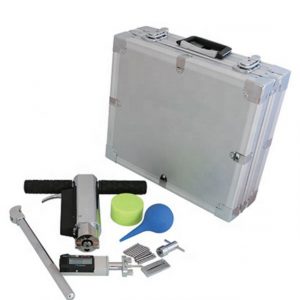

Penetration Mortar Concrete Compressive Strength Tester
