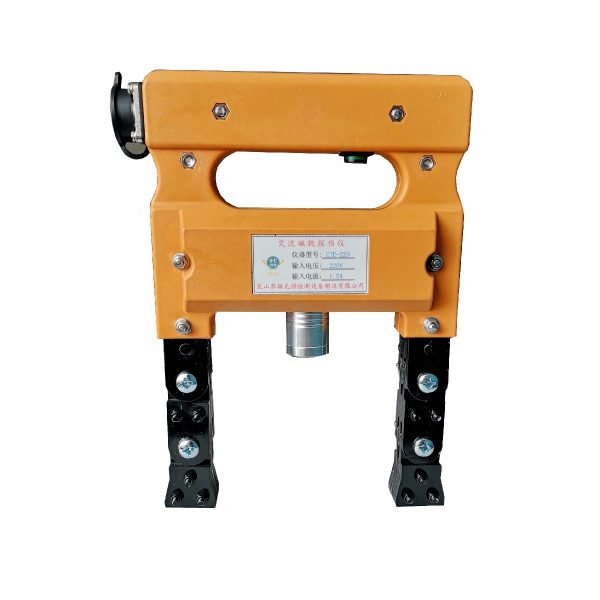

AC DC Magnetic Particle Yoke Flaw Detector
AC DC Magnetic Particle Yoke Flaw Detector has AC, DC, AC and DC dual-purpose magnetic particle flaw detector. The DC power supply is rechargeable battery, which is suitable for field operation without power supply and high-voltage inaccessible containers, bridges, pipelines and other field operations. The continuous working time of one charging can reach more than 6 hours. The AC power supply adopts ~ 220 V power supply for direct input without other instruments. It is easy to operate, simple, light weight and easy to carry.
- Description
- Inquiry
 AC DC Magnetic Particle Yoke Flaw Detector has AC, DC, AC and DC dual-purpose magnetic particle flaw detector. The DC power supply is rechargeable battery, which is suitable for field operation without power supply and high-voltage inaccessible containers, bridges, pipelines and other field operations. The continuous working time of one charging can reach more than 6 hours. The AC power supply adopts ~ 220 V power supply for direct input without other instruments. It is easy to operate, simple, light weight and easy to carry.
Parameter
Model No | CJE-12/220 AC and DC | CJE-12 DC | CJE-220 AC | |
Power | ~220V50Hz -12V | -12V | ~220V50Hz | |
Charging power supply | 220V 50Hz | 220V 50Hz | ||
Battery | MF12-7.2H | MF12-7.2H | ||
Working current | AC1.5A DC2.0A | DC2.0A | AC1.5A | |
Charging time | 8-15h | 8-15h | ||
Battery life | More than 5 hours | Above 5 hours | ||
Working clearance time | 1 second on 2 seconds off | |||
Magnetizing polar distance | 50~200mm | 50~200mm | 50~200mm | |
Lifting power | A C | >5.5kg | >5.5kg | |
D C | >22kg | >22kg | ||
Weight | Probe head | 3.2kg | 3.2kg | 3.2 kg |
Battery bag | 2.9kg | 2.9kg | ||
Size(mm) | Probe head | 208×52×146 | 208×52×146 | 208×52×146 |
Battery bag | 160×100×70 | 160×100×70 | ||
Charger | 80×60×40 | 80×60×40 | ||
