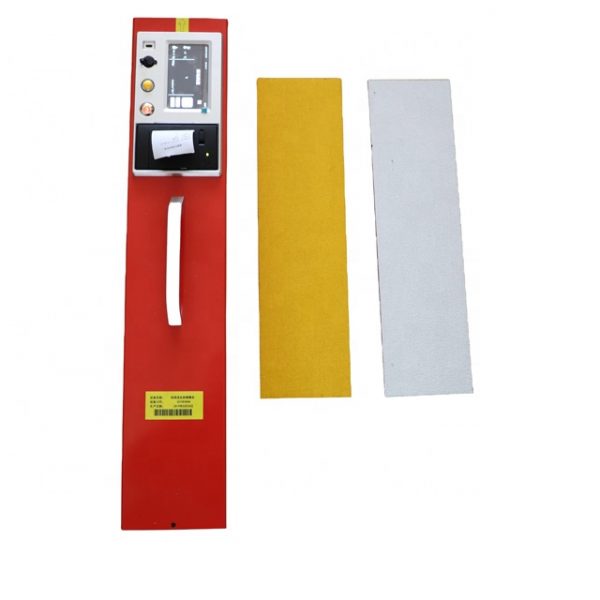

ASTM D4061 Traffic Road Retro Reflectometer
Digital Traffic Road Retro Reflectometer for Marking Line and Vertical Sign is a professional measuring instrument used to measure the reflectivity of road markings. The measured parameters are the retroreflective coefficient R’or the specific brightness of the marking line in mcd. lx-1. m-2. The instrument is simple to operate and reliable in measurement. It can be used not only in laboratory environment, but also in field measurement. It is an optimum instrument for measuring the reverse reflection performance of pavement markings, such as production, quality supervision, engineering construction and supervision units.
- Description
- Inquiry
Digital Traffic Road Retro Reflectometer for Marking Line and Vertical Sign is a professional measuring instrument used to measure the reflectivity of road markings. The measured parameters are the retroreflective coefficient R’or the specific brightness of the marking line in mcd. lx-1. m-2. The instrument is simple to operate and reliable in measurement. It can be used not only in laboratory environment, but also in field measurement. It is an optimum instrument for measuring the reverse reflection performance of pavement markings, such as production, quality supervision, engineering construction and supervision units.
Standard :
ASTM D4061-94, DIN67520, 67521
Feature:
Supporting fast measurements (retroreflective coefficients measured in 3 seconds)
Supporting simple calibration procedures
Large battery capacity, long standby time, and support fast charging
Supports high brightness LCD transparent touch screen, can see the operation interface in the light
Support multiple measurements to calculate average values
Support Real-time Broadcasting of Measurement Data
Support real-time broadcast of lock-in site, print out test results directly through printer site
Input Chinese, English and Characters with Touch Keyboard
Support real-time display of temperature and humidity on site
English menu operation mode can be opened to foreign customers to facilitate their use.
Supporting intelligent standby management, the system automatically goes to sleep without operation
Portable instrument with small size and light weight
Supports the calibration of two colors before detection in the same field environment, without the need for calibration operation every time detection or encounter different colors.
Parameter:
Measurement items: reverse reflection coefficient mcd.m-2.lx-1
Measurement range: 0-4000
Observation angle: 1.05 degree
Incidence angle: 88.76 degrees, complementary angle is 1.24 degrees
Light source color temperature: 2856K +50k
Measuring aperture area: 340mm x 95mm
Repeatability measurement error: <3%
Battery Continuous Working Time: > 48H
Data storage space: 8GB
Built-in battery capacity: 13Ah
Charging power supply: DC 8.4V
Ambient temperature: – 15 ~ + 40
Use ambient humidity: <98%, no dew
Whole body volume: 700 mm X 135 mm X 115 mm
