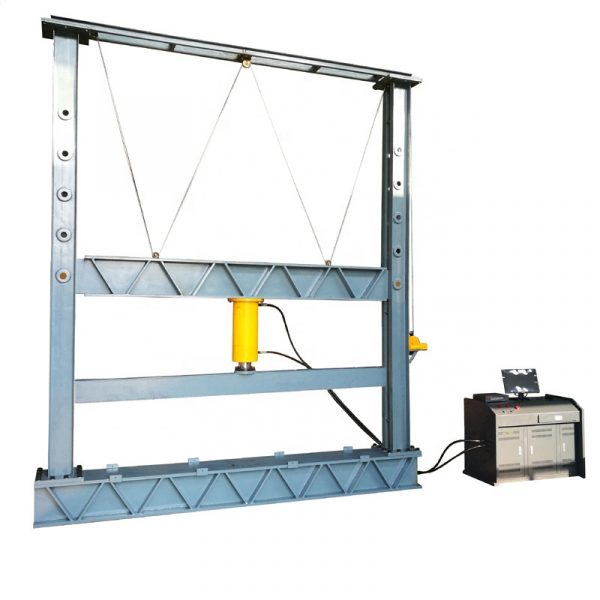

ASTM C497 1000KN Hydraulic Servo Control Concrete Cement Pipe Compression Testing Machine
ASTM C497 1000KN Hydraulic Servo Control Concrete Cement Pipe Compression Testing Machine聽used to test the external load crushing strength test of concrete pipe, reinforced concrete pipe, etc. It is computer controlled, hydraulic servo type compression testing machine.
- Description
- Inquiry
ASTM C497 1000KN Hydraulic Servo Control Concrete Cement Pipe Compression Testing Machine聽used to test the external load crushing strength test of concrete pipe, reinforced concrete pipe, etc. It is computer controlled, hydraulic servo type compression testing machine.
Testing standard:
ASTM C497, AASHTO T280.
聽
Technical Parameters
聽
Test machine class | 1 class |
Test force range | 2%- 100% FS |
Test force indicate relative error | Better than 卤1% |
Displacement resolution (mm) | 0.01 |
Displacement deformation measurement range (mm) | 0-250 |
Piston max. moving speed (mm/min) | 0.5 – 50 |
| Oil cylinder stroke (mm) | 250 |
| Distance between upper and lower compression plate (mm) | 0 – 3850 |
Upper compression plate size/material | Length 2000mm, width 120mm steel, with rubber |
Lower compression plate size/material | Length 2000mm, width 50-350mm (adjustable), hard wood |
Power supply | 3-phase, 380V卤10%, 50Hz |
Dimension size L*W*H (mm) | 2680脳630脳5250 |
Weight (kg) | 5500 |
