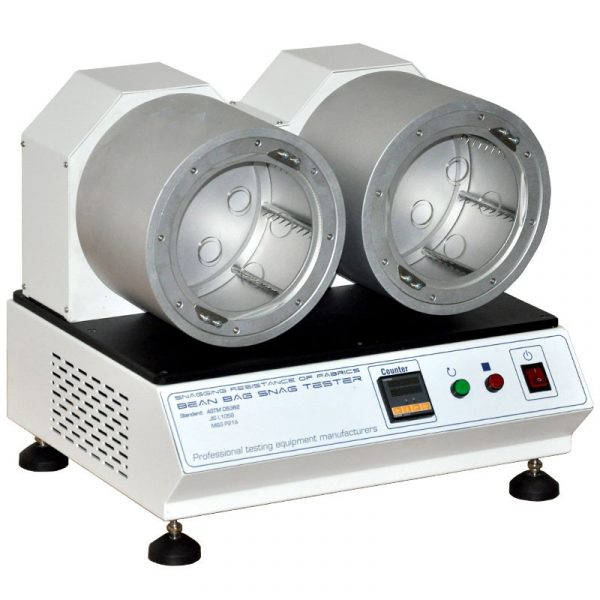

ASTM D5362 Fabric Bean Bag Snagging Resistance Tester

APPLICATION

Fabric bean bag snagging resistance tester, to determine the snagging and picking characteristics of knitted fabrics by tumbling fabrics pillows containing a weighted bean bag within two separate test cylinders provided with eight pinned bars, rotating at 20RPM for 100 rev. provided with predetermined electronic counters.

FEATURES:

1        With transparent plexiglass security cover, protect the operator and easy to observe testing process;

2        Drum being made from Anti-rust material for long time use

3         LED display and the counter can be preset;

4         Automatically stopped by the counter after predetermined revolution reach.

5        Wide international accepted testing method

Fabric Bean Bag Snagging Resistance Tester Parameter

1         Drum size                     Φ200*145mm

2          Pinned bar                    8

3          Testing speed             20±3 r/min

4          Size of pinned bar        Φ8*127mm with 9 pin on it

5          Pin                 length 10mm, spacing 12, inclination 30±5°

6          Specimen size             215mmx115mm

7         Bean bag                      450±10g

8          Dimension                 47x38x38cm (L x W x H)

9          Weight                         Approx.38kg

10       Power supply              AC 220V 3A
