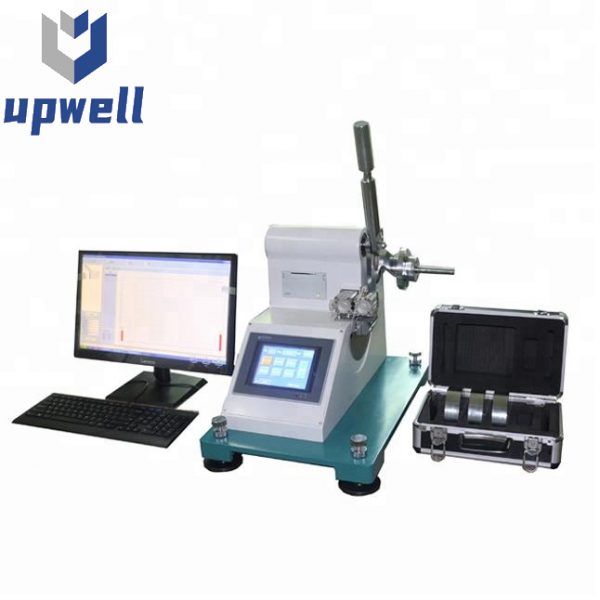

BS EN ISO 13937 ASTM D1424 ASTM D5734 Digital Fabric Elmendorf Tearing Strength Tester
Digital Elmendorf Tearing Tester聽is designed the ballistic tearing strength of military uniforms, canopy sails, tends, umbrella, hammock and other woven fabric, and sometimes is used to access the durability (or brittle) of fabric after resign finishing, additive or coating,etc.聽
Related Testing Standard:BS EN ISO 13937 BS EN ISO 4674-2 BS EN ISO 21974 ASTM D1424 ASTM D689B-96A ASTM D5734 DIN 53128 JIS L1096
- Description
- Inquiry
Digital Elmendorf Tearing Tester聽is designed the ballistic tearing strength of military uniforms, canopy sails, tends, umbrella, hammock and other woven fabric, and sometimes is used to access the durability (or brittle) of fabric after resign finishing, additive or coating,etc.聽
聽聽
Features:
- Digital decoder technique ensures accuracy test result up to聽鈮ぢ0.5%FS;
- Measure tearing force automatically, no need to read gauge value manually, get fast test speed;
- Support PC control, man-machine interface friendly, operate easy;
- Support print test report, and data inquiring;
- Pneumatic clamping, automatic cutting, reduce operation complication and ensure test result with
聽聽聽聽聽high repeatability;
- Choose related test unit to conform requirements of different test standards;
- Alarm when within invalid measurement range, and clearly displayed on LCD panel;
- Automatic correction functions for pendulum fiction damping to improve test accuracy.
聽聽聽聽聽聽聽聽聽聽聽聽聽
Key Specification of elmendorf tearing strength tester:
| Tearing force range | 0~16N,0~32N, 0~64N, 0~128N |
| Test accuracy | 卤0.5%FS |
| Force unit | N, cN, kgf, gf, lbf (selectable) |
| Clamp method | pneumatic clamp, clamp two ends separately or at the same time |
| Gravity acceleration | Settable according different distraction |
| Tearing length | 43mm |
| Cut length聽 | 20卤0.2mm |
| Clamp gauges鈥 distance | 2.8卤0.3mm |
| Main machine dimension | 400脳640脳700mm (L脳W脳H) |
| Instrument weight | 68Kg |
| Power supply | AC220V 100W |
