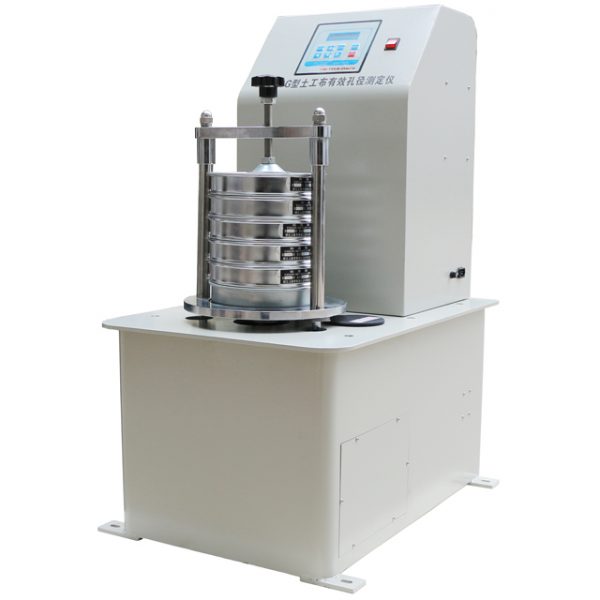

Dry Sieving Geotextile Effective Aperture Tester

Dry Screening Testing Method Dry Sieving Geotextile Fabric Effective Aperture Tester This instrument is suitable for the determination of the effective aperture dry sieving method of geotextiles and composite geotextiles, and its performance meets national standards. It is suitable for testing and laboratories in the departments of geology, metallurgy, chemical industry, coal, national defense, scientific research, grinding wheels, cement, construction, etc. Screening and analysis of the materials.

Main Parameter :

1. Diameter of sieve: 200mm
2. Screen stack height: 400mm
3. Radius of gyration: 12.5mm
4. Number of shakes of the sieve: 221 times/min
5. Number of vibrations: 147 times/min
6. Up and down amplitude stroke: 5mm
7. Timing range: 0~60 minutes
8. Rotation speed: 2800 rpm
9. Dimensions: 680×450×750mm
10. Weight: 100kg
11. Power source: AC380V 50Hz 400W
