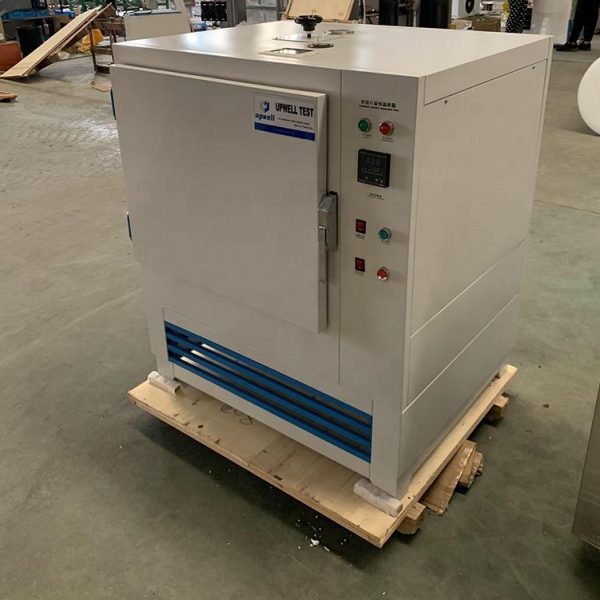

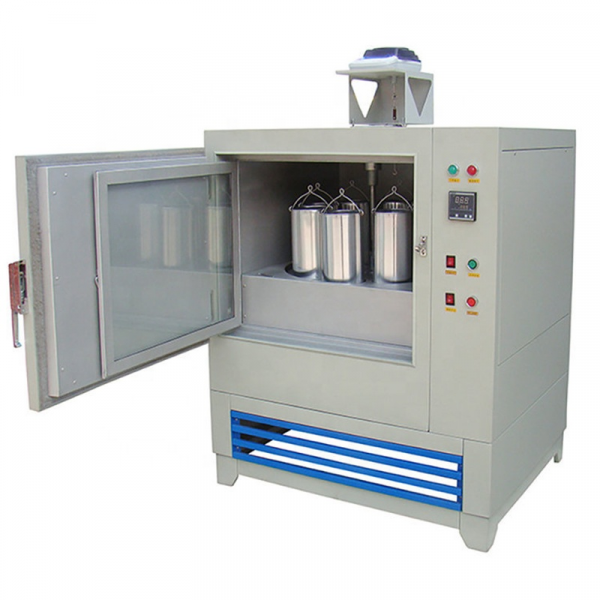

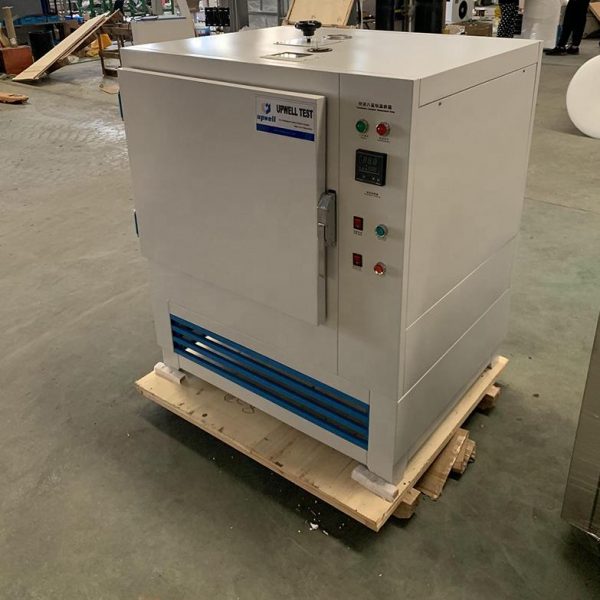

Fabric and Textile Drying Rate Testing Oven

High Speed Fabric and Textile Drying Rate Testing Oven is used to test the moisture content and moisture regain of all kinds of textile material and production.

Textile Fabric Moisture Regain Test Chamber and Moisture Oven adopting high accuracy, imported electronic balance, guaranteeing the accuracy of testing result. The eight-basket oven manual weigh and memory. Manual calculation.

Parameter

1. Temperature control range: room temperature~150℃

2. Temperature control accuracy: ±2℃

3. Four-corner temperature difference: ≤3℃

4. Blower motor: 40W

5. Rotary basket motor: 6W

6. Rotating speed of basket: (3±1) r/min

7. Heating power: 2.75kW

8. Chain balance: Maximum weighing 200g, minimum indexing value 10mg

9. Hanging basket: the maximum weight difference of 8 hanging baskets is less than or equal to 10mg (cold scale)

                 Maximum weight difference ≤20mg (heat scale)

10. Power supply: AC 220V±10% 50Hz

11. Weight: 136Kg

12. Volume: 940mm×840mm×1135mm
