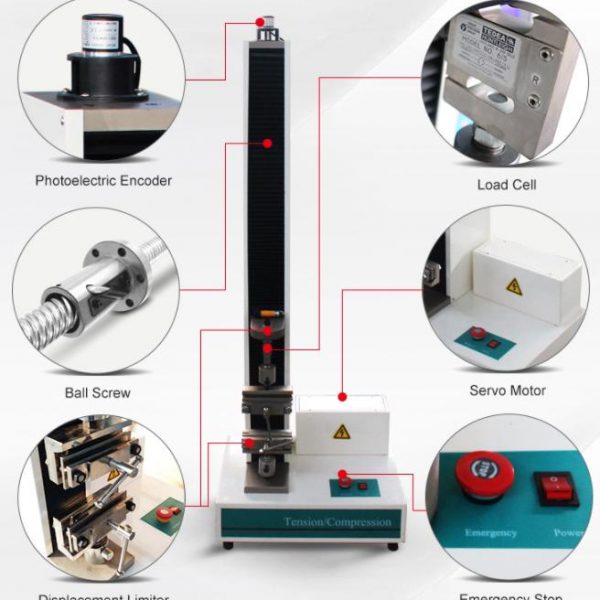

Fabric Seam Strength Tester
Seam Strength Tester is used to determine the mechanical property of woven fabric, non-woven fabric, knitted fabric, inluding tensile, tearing, seam slippage, elastic recovery, etc.
- Description
- Inquiry
Seam Strength Tester is used to determine the mechanical property of woven fabric, non-woven fabric, knitted fabric, inluding tensile, tearing, seam slippage, elastic recovery, etc.
Testing StandardÂ
| Tensile | ISO 9073-3, 13934-1/2; ASTM D461, 5034, 5035; JIS L1096 |
| Tearing | ISO 13937-2/3/4; ASTM D2261 |
| Seam slippage | ISO 13936-1/2; ASTM D434, 1683 |
Â
Â
Seam Strength Tester Parameter
| Measurement Range | 5000N |
| Measurement range of the force | 0.4%–100%FS |
| Accuracy for testing force | Better than 0.5% |
| Resolution of testing force | 1/300000 |
| Resolution of crosshead displacement measurement | 0.0025mm |
| Accuracy of deformation measurement | ±0.5% |
| Crosshead speed | 0.01—500mm/min |
| Accuracy of Crosshead speed | ±1%(0.01~10mm/min); ±0.5%(10~500mm/min) |
| Valid Testing Space | 800mm |
| Working Environment | 10C-30C, Â relative humidity below 80% |
| Power Supply | Single Phrase,220V±10%,50Hz |
