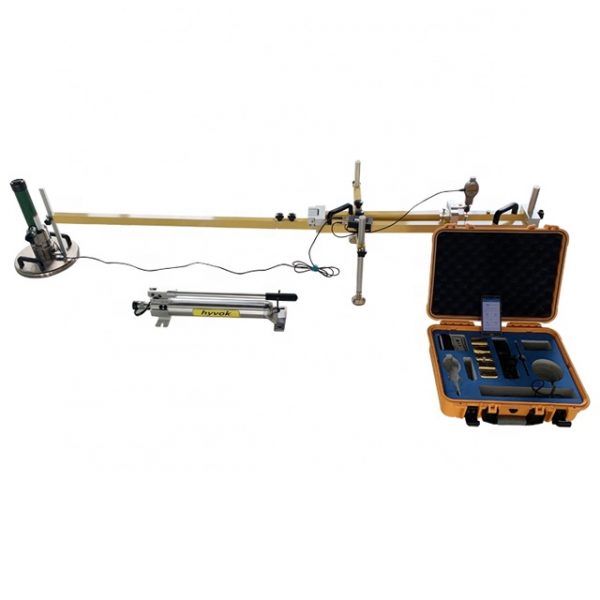

Ground Static Deformation Modulus Tester
Ground Static Deformation Modulus Tester/Plate Load Bearing Tester is used to measure the roadbed sedimentation value under static load, thus to assess the roadbed bearing capacity and deformation, it’s suitable to used for raiway, highway, airport. It’s very important pavement testing instrument.
- Description
- Inquiry
Ground Static Deformation Modulus Tester/Plate Load Bearing Tester is used to measure the roadbed sedimentation value under static load, thus to assess the roadbed bearing capacity and deformation, it’s suitable to used for raiway, highway, airport. It’s very important pavement testing instrument.
Feature:
Imported sensors and parts guarantee high measuring accuracy
LCD display with backlight for high visibility
Automatic calculation of Ev1,Ev2 and Ev2/Ev1 value, and display curve
Built in K30 test program, fast test the subgrade coefficient
Portable main machine equipped with Bluetooth micro-printer,
USB data interface easy for connection with computer
Parameter:
Test coverage | Applicable soil type | All kinds of soil and earth-stone mixed packing with particle size less than 1/4 of bearing plate diameter |
| Test impact depth | 0~500mm | |
| work environment | temperature -10℃~40℃   humidity <90%HR | |
Armed with the host | specification | Screen size :3 inches volume:100×205×40mm weight:0.8kg |
| memory capacity | 400 sets of test data | |
| power supply mode | Large capacity lithium battery, working time more than 18 hours | |
| display usage | Chinese-english switching display | |
printer | attended mode | Wireless bluetooth printing |
The sensor | Pressure sensor range | 100kN |
| Displacement sensor range | 25mm,resolution ratio 0.01mm | |
data acquisition unit | bearing plate | diameter:300mm thickness:25mm weight:17.5kg |
| loading device | oil hydraulic pump:pressure100kN High pressure hose:length2m Extension of pluggable pressure cylinder pole:1×40mm,1×90mm, 1×120mm,1×160mm,2×60mm | |
| Sedimentation tester | Three-point support frame (with retractable, rotatable lever arm, adjustable base) size: 2320×570×420mm(length * width * height) weight: 12.5kg | |
packing specification | mainframe box | Material: engineering plastics volume:470×360×170mm weight:7.0kg |
| Outer packing case 1 | Material: aluminum alloy volume:1410×510×260mm weight:72kg | |
| Outer packing case 2 | Material: aluminum alloy volume:1270×440×230mm weight:32kg |
