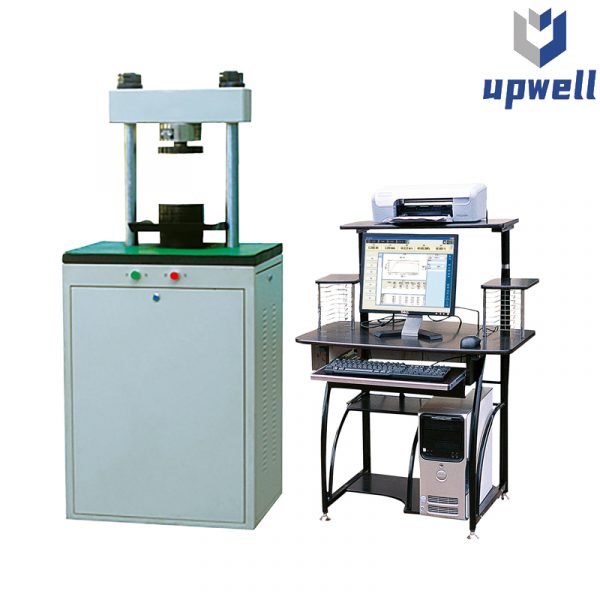

YAW-300 Cement Compression Testing Machine
- Cement Compression Testing Machine
- Load Capacity:300kN
- Control type:Computer control
- Description
- Inquiry
聽Application and Functions
This machine can do compression and bent tests of cement on one machine. It conforms to ISO-R679 Cement strength test method and GB/T17971-2005 Cement and sand strength test method. The test process is automatic, low noise and high precision. Fully new digital valve can avoid contamination and jams.
聽Main technical parameters
| Type | YAW-300 | |
| Max. Testing force | 300kN | |
| Accuracy | 0.5/1grade | |
| Measuring range of testing force | 1%~100%FS | |
| Loading rate of testing force | 0.02%~100%FS/s | |
| Resolution of testing force | 1/500000 Max.deformation | |
| Host machine structure | double columns | |
| Column distance | 285mm | |
| Max distance between upper and lower plates | 260mm | |
| Size of upper and lower plate | 155mm/175脳175 | |
| Distance adjust method | Piston up/down | |
| Piston Stroke | 100mm | |
| Power supply | 220V卤10%, 50Hz | |
| Weight | 500kg | |
