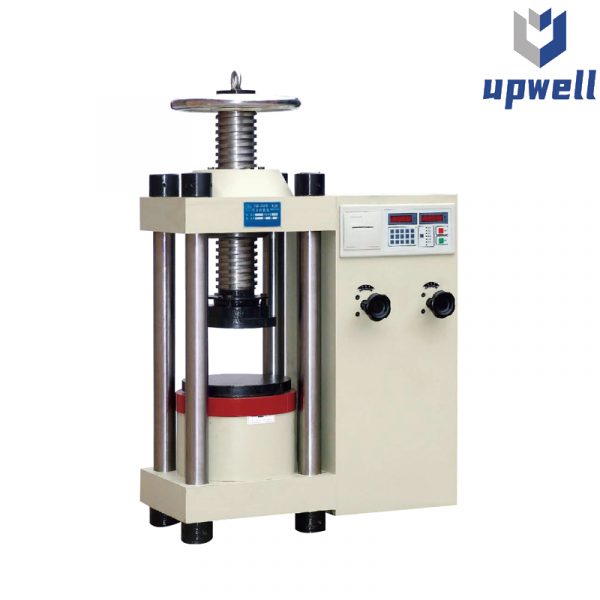

YES Digital Display Concrete Compression Testing Machine
- Economy type Concrete Compression Testing Machine聽
- Load Capacity:2000kN,3000kN
- Control Type: Manual聽
- Description
- Inquiry
Application and Functions
The digital display compression testing machine is mainly used for compressive strength test of concrete,聽cement, brick, stone and other building materials. This machine聽adopts chrome plated 4 column structure,聽uses hydraulic聽oil for聽loading, manual hand wheel to adjust the testing space, real time display loading rate kN/s, peak valve kN on the LED meter, the mini-printer prints test results. It adopts 46# anti-wear hydraulic oil.
Main technical parameters
| The maximum聽test聽force聽 | 2000KN | 3000KN |
| Test force range聽 | 4%-100% | |
| Test force聽shows聽value聽relative聽error | < 卤1%聽of the displayed聽value | |
| The聽Max.聽spacing between聽upper and lower pressure plate | 320mm | |
| Piston stroke | 50mm | |
| Hydraulic pump rating pressure | 40MPa | |
| The upper plate size | 桅220mm聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 桅300mm | |
| The lower plate size | 桅300mm | |
| Piston聽diameter | 蠁125mm | |
| Power supply | 380V卤10%, 50Hz, 0.75kW | |
| Overall dimension (L脳W脳H) (mm) | 800脳500脳1200; | |
| Weight | 700kg聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽1500kg | |
