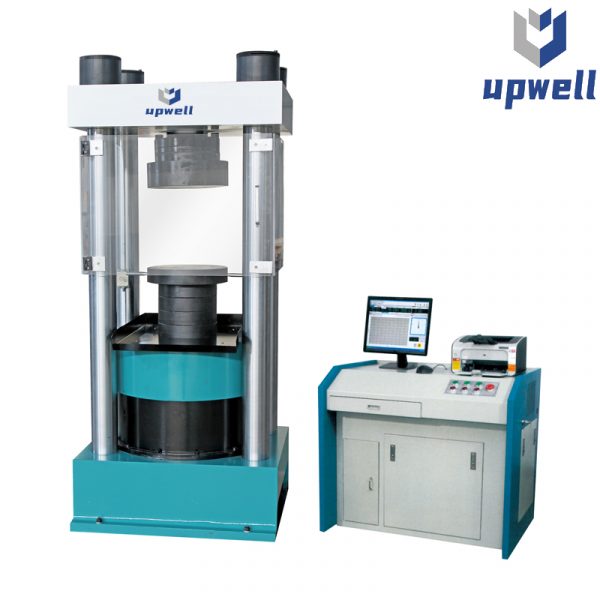

YAW Computerized Electro-hydraulic Servo Compression Testing Machine
- Computerized Electro-hydraulic聽 Compression Testing Machine聽
- Load capacity:2000kN,3000kN
- Control type:Computer Control聽
- Description
- Inquiry
Application and Functions
This tester is mainly used for the compressive strength test of building materials such as cement, concrete samples and concrete components. It can be used for the compression test of red bricks after being equipped with special attachments. It is a construction engineering inspection unit, a quality supervision department, and a college and university. And large industrial and mining companies ideal laboratory testing equipment. The control software adopts the all-digital multi-channel closed-loop measurement and control system to integrate the testing and control system of the latest generation of test machines developed by many international technical experts. It adopts constant force, constant displacement, and other control methods. The force-displacement and force can be displayed in real time during the test. Time and other test curves, and can automatically switch smoothly, automatically obtain the data specified in the relevant standards.
Main technical parameters
Model | YAW-2000 | YAW-3000 |
Maximum test force | 2000kN | 3000kN |
Test level | 0.5/1 | |
Test force measurement range | 1%~100%FS | |
Test force loading rate | 0.02%~100%FS/s | |
Test force resolution | 1/500000 of the maximum deformation | |
Host structure | 4 column | |
Column effective spacing(mm) | 460脳460 | |
Upper and lower platen spacing(mm) | 500 | |
Upper and lower pressure plate size(mm) | 桅300 | |
Platen spacing adjustment method | Piston lift adjustment (maximum adjustment range < piston travel) | |
Piston stroke(mm) | 150 | |
Piston movement direction control | Two-way cylinder | |
Mainframe dimensions (length, width, height mm) | 720脳720脳2000 | |
Oil source dimensions (length, width, height mm) | 1150脳600脳900 | |
Total power(kw) | 1.1 | |
Weight(kg) | 3200 |
