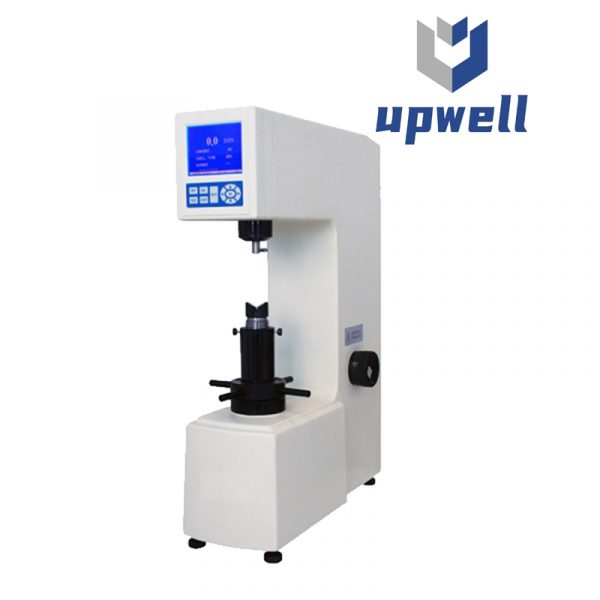

HRMS-45 Digital Superficial Rockwell Hardness Tester

HRMS-45 Digital Superficial Rockwell Hardness Tester

Categories: Tags:
  • Description
  • Inquiry

Applications:

HRMS-45 is a half automatic and intelligent superficial Rockwell testing machine with high accuracy, reliability and durability. It is applied聽at workshops and measurement department for determining the superficial Rockwell hardness of the ferrous and non-ferrous metals.

Technical specifications

Rockwell ScalesHR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Initial Test Force3kgf (29.42N锛
Test Force15kgf (141.7N), 30kgf (294.2N), 45kgf (441.3N)
Dwell TimeAdjustable 1-60s
聽Hardness IndicationDigital LCD Display
Loading ControlAutomatic
Date OutputRS 232/ Printer
Max Height of Specimen175mm
Instrument Throat165mm
Execution聽StandardGB/T230.2, JIG112, EN-ISO6508, ASTM E-18
Overall Dimension520脳215聽脳700mm
Net Weight73kg
