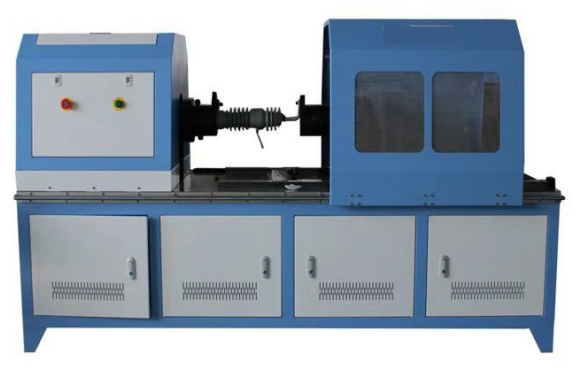

Insulator torsion testing machine
- Description
- Inquiry
Introduction:
The insulator torsion testing machine is mainly used for the detection of torsional load and torsional destructive force of insulators. The tested sample is installed between the clamps with adjustable space, which can adapt to the test of torsional mechanical properties of different tested samples. The testing machine is operated by computer control, and can perform fixed-angle torque tests; the display shows the angle-torque curve of the tested part; real-time display of angle, torque, torque peak hold, and the working status of the testing machine; test data storage, printing test reports, etc.
Parameter:
| Model | UWN-T500 | UWN-T1000 | UWN-T2000 | UWN-T3000 | UWN-T5000 |
| Maximum test torque | 500Nm | 1000Nm | 2000Nm | 3000Nm | 5000Nm |
| Torque measurement range | 1%-100% | ||||
| Torque minimum reading value | 0.01Nm | 0.1Nm | 0.1Nm | ||
| Relative error of torque indication | ±1% | ||||
| Minimum reading of torsion angle | 0.1° | ||||
| Maximum twist angle | 99999° | ||||
| Torque angle measurement relative error | ±1% | ||||
| Torsion speed | 1-720°/min | ||||
| Sample size | 0.1-500mm | ||||
| Maximum distance between chucks | 500mm | ||||
| Test rotation direction | bi-directional | ||||
| Accuracy | Class 1 | ||||
| Power supply | 220V，50Hz | ||||
| Host size | 1260*500*1000mm（For reference） | ||||
