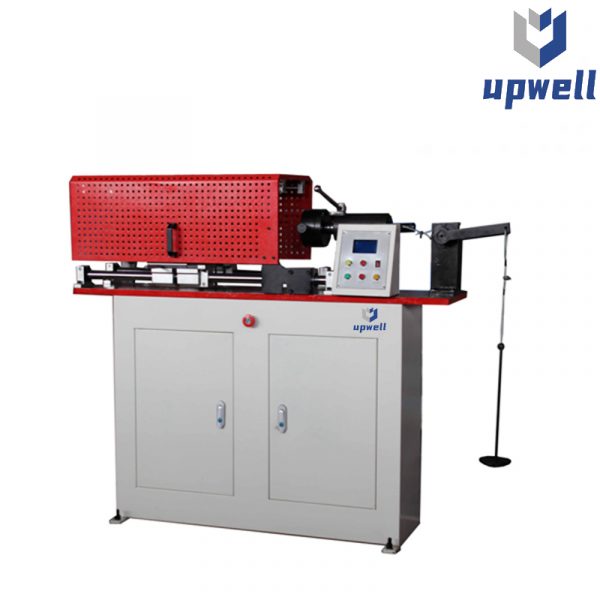

Metal Wire Torsion Testing Machine
- Metal Wire Torsion Testing Machine
- Control Type: Semi automaticÂ
- Specimen diameter(mm):Ф0.3- Ф1,Ф1- Ф3,Ф3- Ф10
Categories: TORSION TESTING MACHINE Tags: Metal Wire Torsion Testing Machine
- Description
- Inquiry
Main functions
The series of test machine mainly used to test the capacity of bearing deformation of the metal wires and other wire ropes whose diameter are φ1~φ10mm during the reversing. The test can show the surface defects of wire during the test process.
 Main technical specifications
         | NDX-1 | NDX-3 | NDX-10 |
 Specimen diameter (mm) | Ф0.3- Ф1 | Ф1- Ф3 | Ф3- Ф10 |
 Test speed (rev/min) | 60, 180, 300 | 60, 90, 120 | 30, 60 |
 Length of camping wire (mm) | 100- 300 | 300- 500 | |
 Max. counting circle | 999.9 | ||
 Grip hardness (HRC) | 55- 65 | ||
 Work noise (dB) | <70 | ||
 Power supply | 3-phase, AC 380V±10%, 50Hz |
