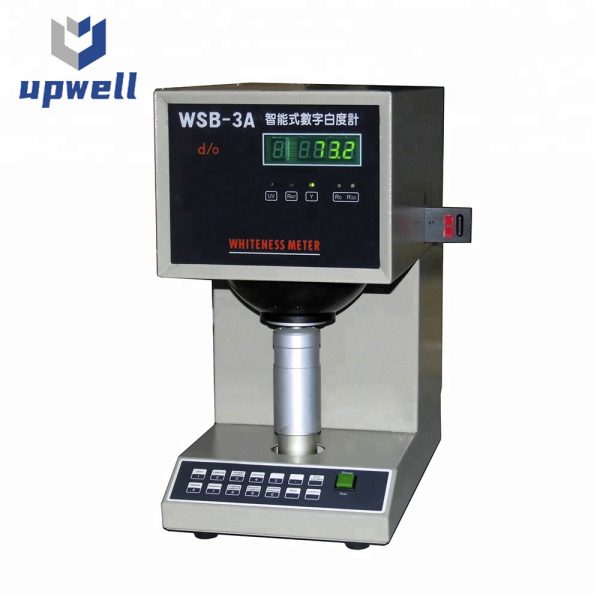

ISO2469 ISO2470 Whiteness Testing Machine Brightness Meter

ISO2469 ISO2470 Whiteness Testing Machine Brightness Meter

 Brightness meter is a special machine which designed accordance with domestic and international standards.

Related Testing Standard:  ISO2469 ISO2470

  • Description
  • Inquiry

Application:

 Brightness meter is a special machine which designed accordance with domestic and international standards. It can directly measure objects whiteness, brightness, transparency, opacity, light scattering and absorption coefficient and other optical properties. Widely used in paper products, textiles, chemicals, pharmaceuticals, mineral powder, flour, salt, building materials, paints, ceramics, plastics and other items.



Features:

1   Adopt d/0 optical illumination/observation system, effectively eliminated the errors caused by sample

     surface roughness and different placement ;

2   Instruments used microcomputer technology to realize the value of zero and standard auto-calibration;

3   With a power-off protection function;

4   Single or multiple measurements are both available;

5    Adopt integrated switching power supply circuit, low consumption;

6    Sample whether is to add fluorescent material and fluorescent whiteness can be measured;

7    Easy to operate and maintenance.

Whiteness Testing Machine Brightness Meter Parameter:



Zero drift



≤0.1/0.5hour



Show value drift



≤0.2/0.5hour



Repeatability



≤0.2



Basic error



≤0.5



Show value error



≤1.0



Specular reflection



≤0.1



Power-off protection



≥50hours



Power supply



220V 50Hz 40W



Weight



12kg



Dimensions



370×205×400mm
