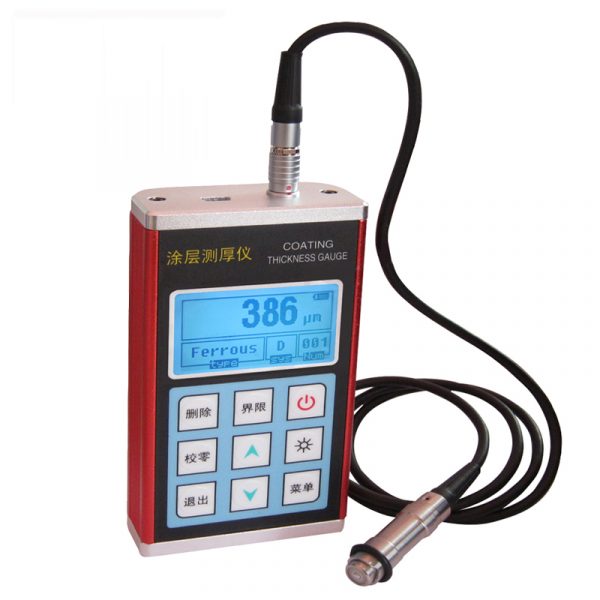

Portable Coating Thickness Gauge Meter
The instrument is a type of portable measuring gauge, capable of measuring rapidly, nondestructively, and precisely the thickness of coating and cladding material. It is suitable for on site as well as for laboratory uses. Via the using of different probes, many sorts of measuring can be satisfied by the gauge.聽 It can be applied comprehensively to manufacturing, metal processing and chemical profession as well as to commercial inspection. It is indispensable for the major of materials protection.
- Description
- Inquiry
聽The instrument is a type of portable measuring gauge, capable of measuring rapidly, nondestructively, and precisely the thickness of coating and cladding material. It is suitable for on site as well as for laboratory uses. Via the using of different probes, many sorts of measuring can be satisfied by the gauge.聽 It can be applied comprehensively to manufacturing, metal processing and chemical profession as well as to commercial inspection. It is indispensable for the major of materials protection.
Feature聽
*this model聽is capable to聽measure thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel), also can measure thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, plastic) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel);聽聽
*Various probes optional, probe auto matching;
*Durable ruby probe, more wear and precise;
*Full metal shell design, sturdy, portable, high reliability;
*Alarm function when overrun the settable limiting range;
*Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy;
*Large storage, easy to delete single or multiple saved values;
*PC software optional, convenient the data transmission, analysis, printing etc.
Parameter:
| Measuring聽Range | Standard 0~1250渭m聽聽(probe F10聽Max聽10000渭m, 聽N3 0~3000渭m, F3 0~3000渭m) |
| Resolution | 0.1渭m/1渭m |
| Working聽Principle | Magnetic聽& Eddy |
| Substrate | FE / NFe聽base,聽depends on probes |
| Accuracy | 卤2%H+1渭m聽聽Note: H is thickness reading |
| Display | 128×64 LCD with backlight |
| Memory | 5 files聽x聽99聽values |
| Unit聽Switch | Metric (渭m) Imperial (mil) |
| Working聽Temperature | Operation Temp. :-10掳C~50掳C聽聽Storage Temp. :-30掳C-70掳C |
| Power | AA battery 2pcs 聽(Non-aviation transport) |
| Size | 125x67x31mm |
| Weight | 340g |
Packaging List聽
| ITEM | QTY |
| Main Unit | 1聽PC |
| F1 or N1 Probe Optional | 1 PC |
| Standard Calibration聽Piece | 1聽SET |
| Fe or NFe Substrate | 1聽PC |
| User聽Manual | 1聽PC |
| Instrument聽Case | 1聽PC |
| Warranty | 2 Years |
