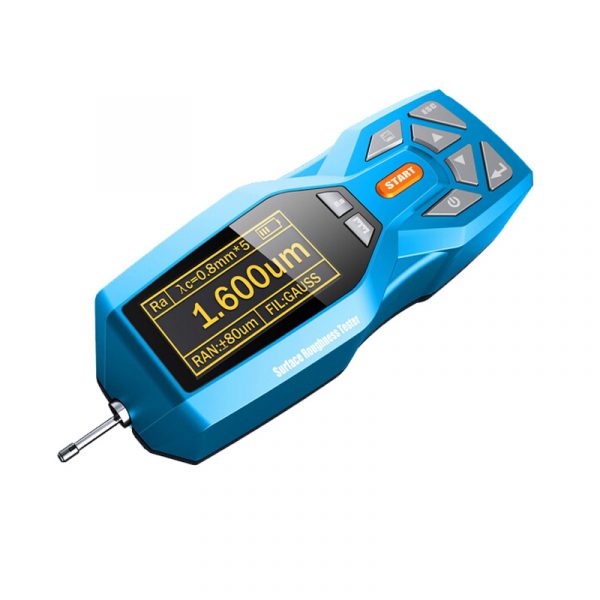

Portable Surface Roughness Meter
Digital Display Portable Surface Roughness Meter is a hand-held instrument suitable for production site environment and mobile measurement needs. It can measure the surface roughness of a variety of machined parts, calculate the corresponding parameters according to the selected measurement conditions, and display All measurement parameters and contour graphics are displayed on the screen.
- Description
- Inquiry
Digital Display Portable Surface Roughness Meter is a hand-held instrument suitable for production site environment and mobile measurement needs. It can measure the surface roughness of a variety of machined parts, calculate the corresponding parameters according to the selected measurement conditions, and display All measurement parameters and contour graphics are displayed on the screen.
It is suitable for a variety of machining parts, machining manufacturing, inspection, commodity inspection and other departments, especially suitable for on-site inspection of large workpieces and production lines, as well as out-of-office verification of inspection, measurement, commodity inspection and other departments, without causing damage to the workpiece.
The range of workpieces that can be measured: plane, cylindrical surface, conical surface, inner hole, groove, curved surface, etc. (special surfaces need to be equipped with suitable sensors for measurement).
Feature
*Stylish design with plastic shell, inspired by “TRANSFORMERS”;
*Visual waveform display;
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours;
*Real-time clock settings and display, convenient data recording and storage;
*With automatic dormancy, automatic shutdown and power saving function;
*Multi-info Display: measurement information, menu prompt, fault and power switch information indicated.
*With PC software, can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories;
*Support OEM Service, high price performance.
Parameter:
| 20 roughenss parameters | Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y,RzJIS,Rsk,Rku,Rsm,Rs,RPc,Rk,Rpk,Rvk,Ry Mr1,Mr2 |
| Measuring Range | Ra: 0.005~16.000μm Rz: 0.02~160.00μm |
| Sample Length | 0.25, 0.80, 2.50mm |
| Evaluation Length | (1~5)L |
| Maximum Drive Stroke | 17.5mm/0.7inch |
| Indication Accuracy | 0.001μm |
| Accuracy | Tolerance≤±(5nm+0.1A) A=Ra value printed on precise specimen |
| Repeatability | <6% |
| Data Storage | 100 groups |
| Power | Rechargeable Li-battery |
| Relative Humidity | <90% |
| Working Temperature | -20°C~40°C |
| Size | 158×63.5x46mm |
| Weight of Host | 0.3kg |
