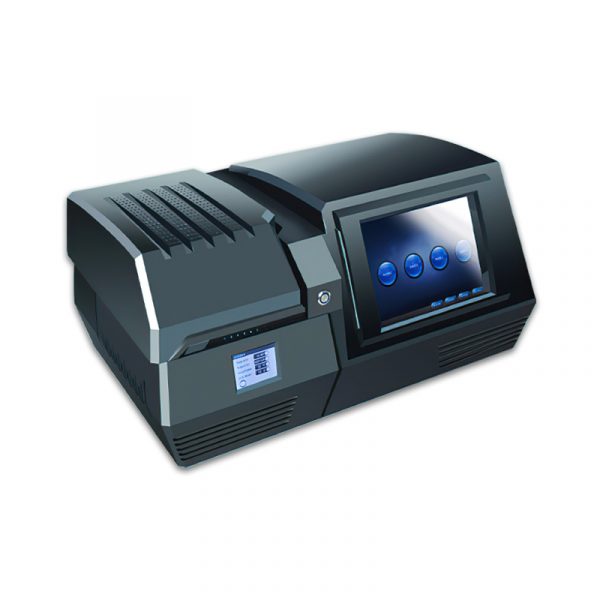

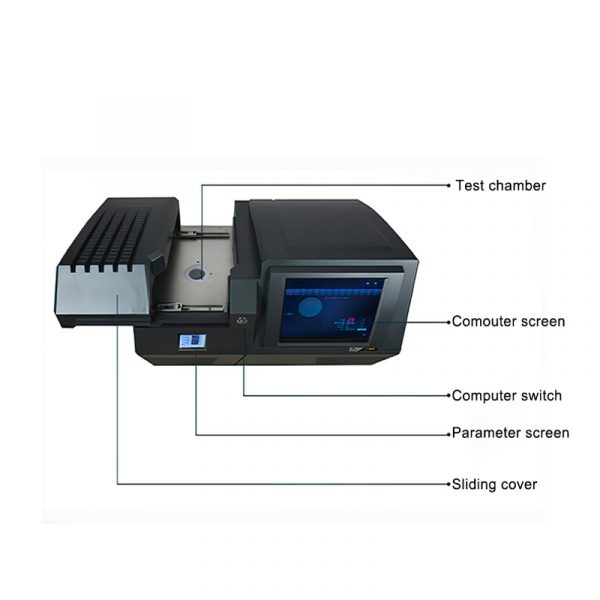

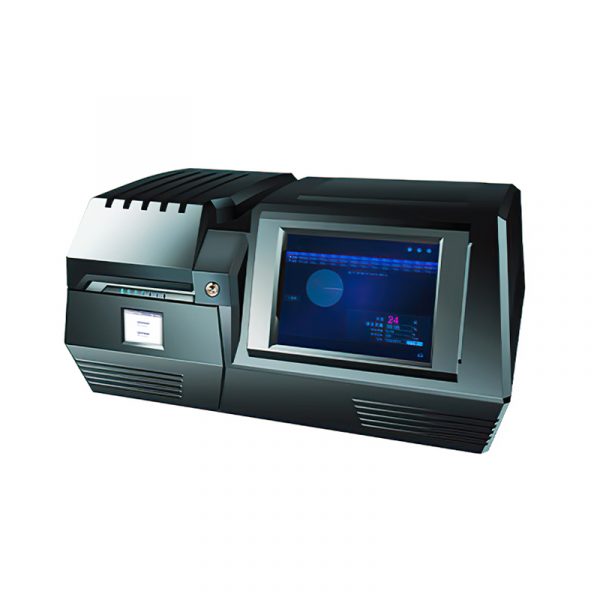

Si-Pin XRF Gold tester for Metal Element Analysis(70 kinds elements Analysis)
- High cost performance
Can fast accurate detection of various precious metal, widely applied! - Nondestructive testing
Will not cause any damage to measured sample jewelry and so on. - Operation is simple and smart
Automated testing without a unique key testing capabilities, with professional personnel - Fast for Testing
Qualitative 3 seconds, 7 seconds can be intuitive results. - Easy to Bring
The integration of design, small footprint, easy to carry and management. - Safe and durable
Have anti-radiation function, the machine more than 10 years of life - High precision
PPM level accuracy, reliable testing data, plus or minus 0.01% of the detection precision - The operational safety
Equipped with radiation protection devices, and active protection operation safety.
- Description
- Inquiry
Introduction:Â

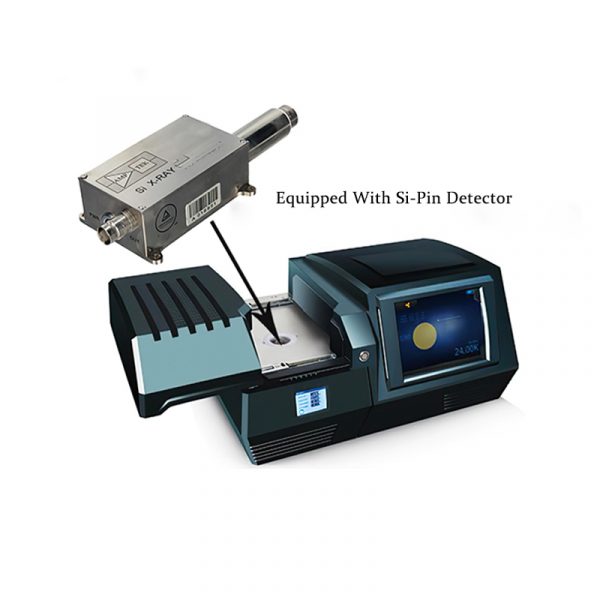

Precious metal detector equipped with imported top SDD,SI PIN detector, the use of aircraft design, high-end atmosphere, with research and development of more than a dozen patents, outstanding performance, in line with the new national standard GB18043-2013, can be accurate detection of gold and silver jewelry and most of other metal elements and arduous substances.
Product advantage:
- High cost performance
Can fast accurate detection of various precious metal, widely applied! - Nondestructive testing
Will not cause any damage to measured sample jewelry and so on. - Operation is simple and smart
Automated testing without a unique key testing capabilities, with professional personnel - Fast for Testing
Qualitative 3 seconds, 7 seconds can be intuitive results. - Easy to Bring
The integration of design, small footprint, easy to carry and management. - Safe and durable
Have anti-radiation function, the machine more than 10 years of life - High precision
PPM level accuracy, reliable testing data, plus or minus 0.01% of the detection precision - The operational safety
Equipped with radiation protection devices, and active protection operation safety.
Standard configuration:
- Active radiation protection
- Global fault diagnosis
- Expansion wire and auxiliary support
- High voltage and over voltage protection
- Lifting pressure start
- Light tube of protection
- Expanded screen
Parameter:
| Name: | Xrf Metal Heavy Element Spectrum | |||
| Testable elements: | Â Ag, Au,Fe, Co, Ni, Cu, Zn, Se, Pd, Rh, Ru, Pt, Ir, Pb and etc(70 elements) | |||
| Equipment principles: | X fluorescence energy dispersion | Â Â Â Â Â Â Â Â | Test area: | 1-2mm spot +<40micron |
| Built-in capacitive touch LED: | OLED (7.9 inches) | Main structure: | High strength metal bracket + aluminum alloy shell | |
| Accuracy: | ±0.03% | Voltage: | 100-240v | |
| Detector: | Si-Pin (Import) | Power: |  150w | |
| Resolution: | 130±5 eV | Operating systerm: | Window 7 | |
| Work enviroment: | – 11 ~ 46 °C | Advantages: | excellent cooling system | |
| Â Battery support:: | no | Intelligence: | automatic protection | |
| Label/normal/thermal printer: | support | weight: | About 33kg | |
| Built-in computer: | yes | size: | 670×400×300mm | |
