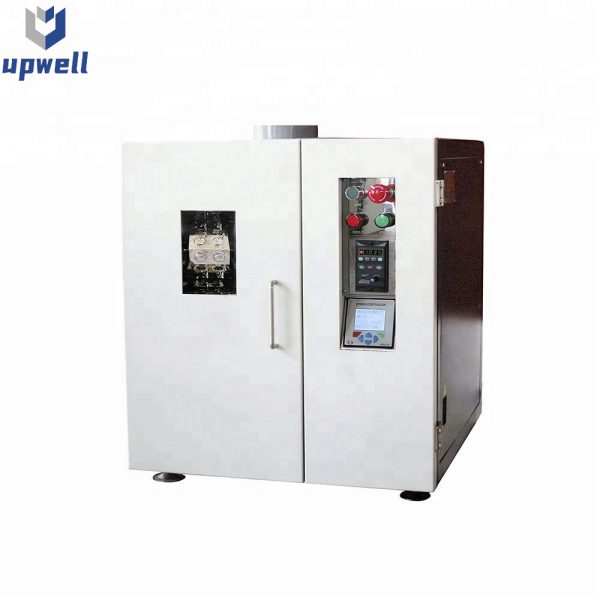

Textile Laboratory Dyeing Machine Accdyer
ACCDYER-24 Textile laboratory dyeing machine is a state of the art dyeing instrument. This unit produces more accurate lab sample dyeing with level and re-producible results with a low liquor ratio for diverse fibers.
- Description
- Inquiry
Application:Â
ACCDYER-24 Textile laboratory dyeing machine is a state of the art dyeing instrument. This unit produces more accurate lab sample dyeing with level and re-producible results with a low liquor ratio for diverse fibers.
New generation of versatile lab dyeing machine adopts new structure of patented technology, heat method and temperature control method with our own proprietary intellectual property rights.
With accurate temperature controlling and stable repeatability, it is precisely used for dyeing trial and sample duplication on the site. With the new design concept of environmental protection and economy, it can achieve the dyeing trial with high saving and zero discharge, easy and simple operation.
It is applicable for various materials, such loose fibers, yarn and pieces of fabric (knitted fabric and woven fabric                     Â
Key Specification:
| Beaker number | 24 Â (Lab dyeing machine)Â |
| Beaker capacity | 300ml |
| Temperature range | RT~140oC |
| Temperature accuracy | ±0.5oC |
| Max. heat rate | 5.5oC/min |
| Max. cool rate | 5oC/min from temperature higher than 100oC |
| Rotating rack speed | 0~50rpm |
| Max. dyeable sample | 30g/beaker |
| Programmable dyeing process | 100 programs, 100 steps for each program |
| Power supply | AC220V, 50Hz |
