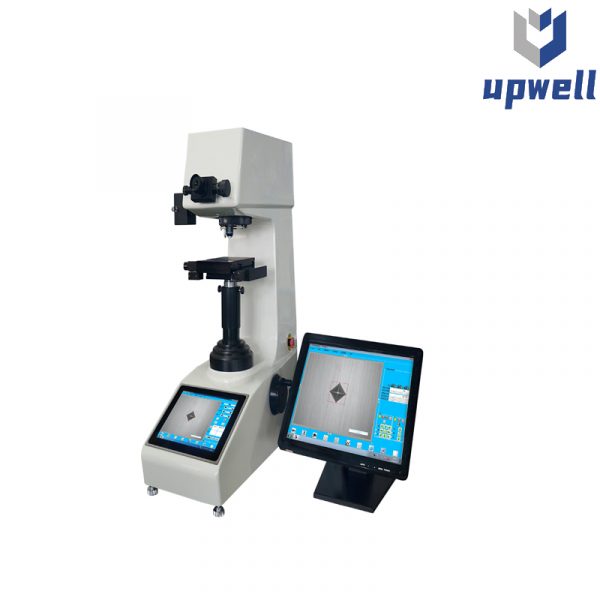

XHVT-10Z/30Z/50Z Fully Automatic Vickers Hardness Tester

Main Function:

This instrument is a new generation of automatic Vickers hardness tester. It adopts the integrated design of hardness tester and panel computer; With Windows 7 operating system, it has all functions of computer. With CCD image acquisition system, it can show the indentation image directly on the touch screen and automatically get the Vickers hardness value. It takes over the old method of measuring the diagonal length by eyepiece, avoids the stimulation and visual fatigue of the light source of the eyepiece, and protects the eyesight of the operator. It is a major innovation of Vickers hardness tester.

• All the testing parameters can be selected on the panel computer. With touching screen, it operates quickly and conveniently and displays clearly and intuitively.
• With CCD image acquisition system, it shows the image clearly and gets the hardness value just by touching the screen.
• Automaticrecognition and shifting between the objective and the indenter, automatically get the Vickers hardness value.
• With the function of hardness scale conversion.
• The system has two languages: English and Chinese.
• With USB, VGA and LAN interfaces, the hardness measurement can be print out by USB interface.
• It can automatically save the measuring data, generate the hardness-depth curve and save as WORD or EXCEL document.
• With motorized X-Y test table, automatic focusing and automatic measuring, it realizes the fully automationof Vickers hardness testing.



Application range:

Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.



Technical Specification:
