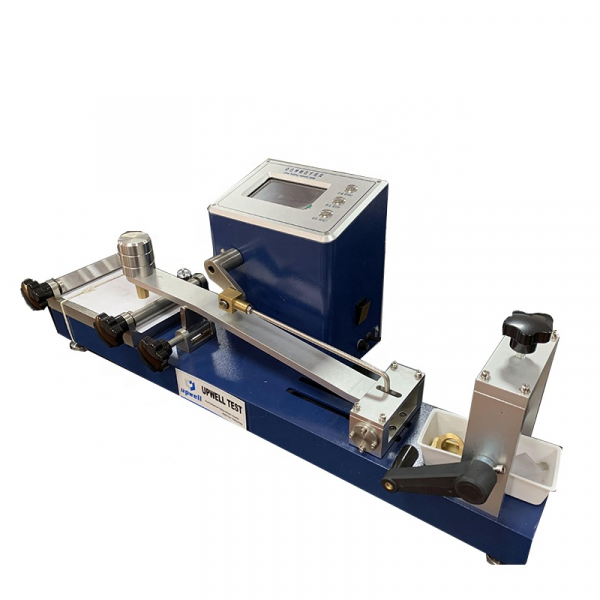

AATCC Fabric Textile Electronic Rubbing Color Fastness Crockmeter

AATCC ISO 105 Fabric Textile Electronic Rubbing Color Fastness Crockmeter

Electronic Crockmeter is designed to determine the color fastness of textiles to dry or wet rubbing, and provided with a crocking finger with a downward force of 9 Newton and the facility for mounting standard crocking fabric.

Relative Standard:ISO 105 X12, ISO 105D02   AATCC 8, AATCC 165

Categories: Tags: , , , , , , ,
  • Description
  • Inquiry

 APPLICATION

AATCC  ISO 105 Fabric Textile Electronic Rubbing Color Fastness Crockmeter  is designed to determine the color fastness of textiles to dry or wet rubbing, and provided with a crocking finger with a downward force of 9 Newton and the facility for mounting standard crocking fabric. A pinned acrylic sample holder ensures rapid sample mounting and repeatability of results. It is electronically driven to minimize operator variation.





 FEATURES

Presetting the rubbing times, and the instrument stop when reach the presetting times;

Simple operation;

Purpose-designed test mode;

Automatic flame application.



Electronic Crockmeter Parameter:

l  Loading pressure of brush and size9±0.2N
Circular: Φ16mm
Square: 19×25.4mm
l  Motion Range of crocking finger104±3mm
l  Shuttle times1-9,999
l  Rotational Speed of Winch60rpm
l  Crocking fingerStandard brush
l  Max Dimension of Specimen220×110×5mm
l  Power SupplyAC220V, 50Hz, 40W
l  Dimensions770×280×250mm(L×W×H)
l  Net weight15Kg
