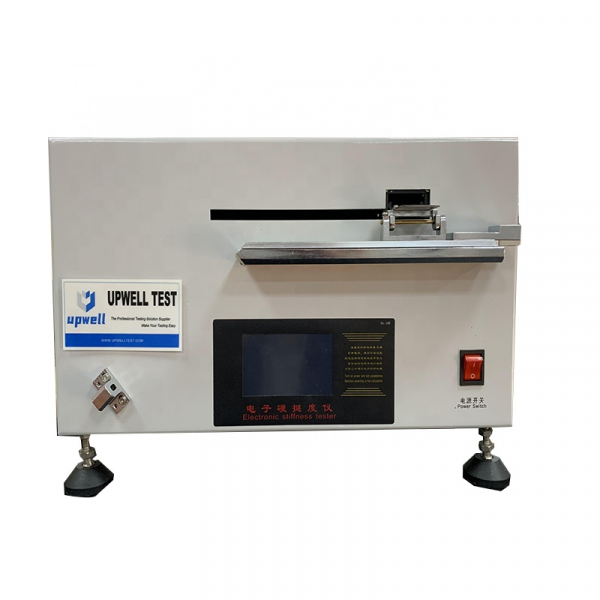

ASTM D 1388  IS09073-7 Digital Fabric Stiffness Tester

Application
Used for testing the stiffness of all kinds of woven and knit goods, nonwoven fabrics and coated fabrics, including cotton, wool, silk, linen and chemical fiber, and also of flexible materials such as paper, leather, film, etc.

Feature

1, panel key, sensitive operation, not easy to damage.

2, the sample can test the angle:41 degrees, 43.5 degrees, 45 degrees, the angle position is convenient, conforms to the different test standard requirements.

3,using infrared measurement method, the reaction is quick and the data are accurate.

4, step motor control, test speed can be set from 0.1mm/s to 8.0mm/s

5,the transmission device is a ball screw and a linear guide to ensure smooth operation and no swing.

6, the pressure plate depends on the weight of the sample., which is in line with the standard, and it will not cause the deformation of the specimen.

7, the instrument has a printing interface, which can direct the data report directly.

8, three standards and a custom standard sample direction(longitude and latitude) each can test the maximum of 99 sets of data.

9, online working mode: professional analysis software, computer operation, report statistics, print output.

Digital Fabric Stiffness Tester Parameters:
