ASTM D3775 Digital Fabric Pick CounterÂ

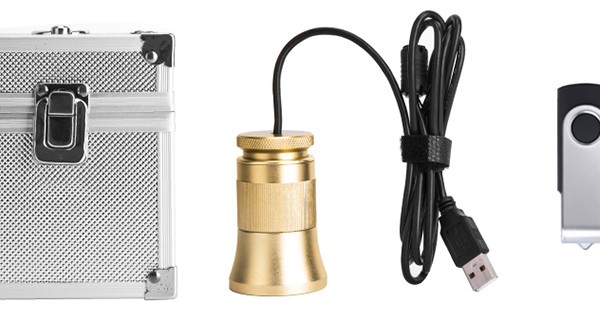

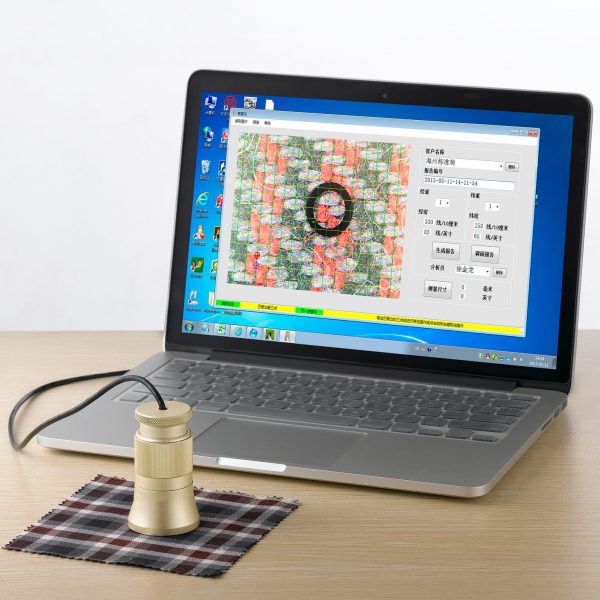

Digital Fabric Pick Counter is used to determine the thread density of woven fabrics and loop density of knitted fabrics. Equipped with a portable high-precision camera to capture and magnify pictures of fabrics, the number of threads or loops on captured pictures can be counted easily on the screen of the computer by the software
Relative Standard:Â ISO 7211.2Â ASTM D3775
- Description
- Inquiry
Introduction:
Digital Pick Counter is used to determine the thread density of woven fabrics and loop density of knitted fabrics automatically. It equipped with a portable high-precision camera to capture and magnify picture of fabrics. It has professional software to test the sample width up to 20cm.
Features:
Digital type, easy and simple to operate
Magnification can reach to 300x and adjustable
Two test mode selectable: Automatic counting and manual counting
Professional analysis software
Parameter:
| Magnification | 1-300x |
| Pixel | 2MP, 1600*1200,640*480.320*240 |
| Operate | Windows/Mac OS |
| Capture Speed | 30FPS |
| Light source | LED light, brightness adjustable |
| Connection | USD 2.0 |
| Power supply | 220V, 50Hz |
| Weight | 700g |
