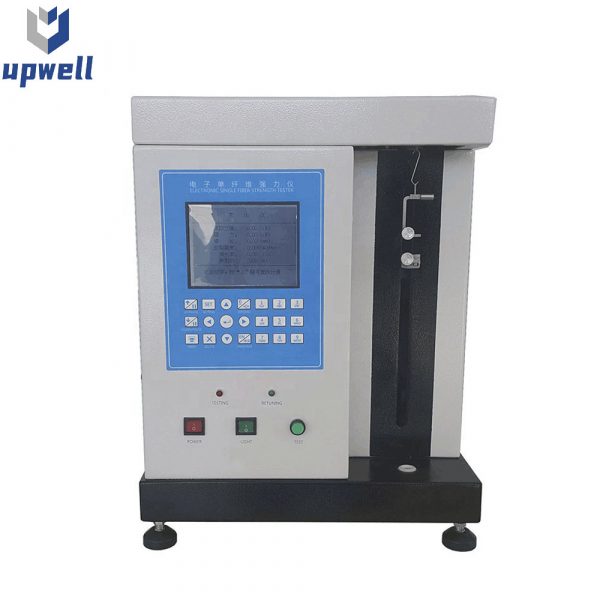

Electronic Single Fiber Tensile Strength Tester

ASTM D3822 ISO 5079 Electronic Single Fiber Tensile Strength Tester

Electronic Single Fiber Strength Tester, also named single fiber strength tester or fiber strength tester. .The tensile strength testing machine is used to determine the breaking strength and elongation at break of single textile fibers, such as, cotton, wool, ramie, silk, glass fibber and chemical fibers.

Description
Inquiry

Electronic Single Fiber Strength Tester, is used to determine the breaking strength and elongation at break of single textile fibers, such as, cotton, wool, ramie, silk, glass fibber and chemical fibers.

Electronic Single Fiber Tensile Strength Tester Parameter

Model No.	UW003E	UW005E
Clamp type	Manual	Pneumatic
Load cell & accuracy	200cN±0.5%
Force resolution	0.01cN
Gauge length	10~60mm, digitally-settable	5~60mm, digitally-settable
Max. extension	150mm
Tensile speed	2~100mm/min
Power supply	AC220V 50Hz
