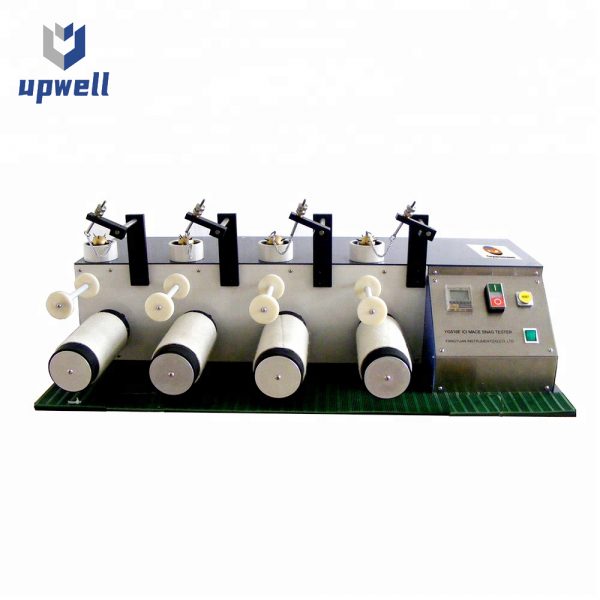

ASTM D3939 JIS L1058 Textile Fabric ICI Mace Snag Tester

ICI mace snag tester applies to rapid determine the tendency of fabrics to snag, (pull yarn loops from fabric) in normal wear. And suitable for woven and knitted fabrics made by textured yarn, non-textured yarn, and spun yarn, etc., not suitable for the mesh fabrics, tufted fabric, and non-woven fabrics, etc.

Relative Testing Standard : ASTM D3939 JIS L1058

Description
Inquiry

Application:

Features of ICI mace snag tester:

Rotating cycle number can be pre-settable and duly displayed on the LED panel.

Stop automatically after getting the preset rotating cycle.

Length of chain is adjustable.

Textile Fabric ICI Mace Snag Tester Parameter:

Number of working stations	4 stations
Revolving barrel size	DiameterΦ82mm (including 3mm thickness of outsourcing rubber), 210mm width
Rotation number of rotating drum	60±2r/min
Total mass of nail hammer	160±10g (including equidistant implantation of 11 studs)
Stitching needle	exposed length 10mm, tip radius: R0.13mm
Fixed guide rod	working width 125mm, diameter 10mm
Distance between nail hammer and guide rod	45mm
Power supply	AC220V;50Hz
External dimension	910mm×360mm×460mm
Weight	50kg
