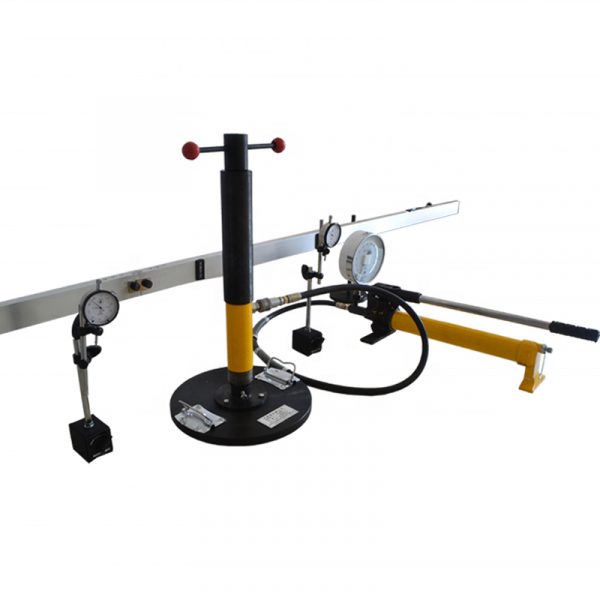

ASTMD1194 Static Soil Plate Bearing Load Tester
Static Soil Plate Bearing Load Tester 0-30kN are used to estimate the bearing capacity of a soil under field loading conditions for a specific loading plate and depth of embedment (ASTMD1194) but also for load tests of soil and fl exible pavement components for use in evaluation and design of airport and highway pavements (ASTM D1195, D1196; BS 1377; CNRNo. 92 and No. 146; DIN18134). We propose a complete range of plate load testing apparatus conforming to the different standards.
- Description
- Inquiry
Static Soil Plate Bearing Load Tester 0-30kN are used to estimate the bearing capacity of a soil under field loading conditions for a specific loading plate and depth of embedment (ASTMD1194) but also for load tests of soil and fl exible pavement components for use in evaluation and design of airport and highway pavements (ASTM D1195, D1196; BS 1377; CNRNo. 92 and No. 146; DIN18134). We propose a complete range of plate load testing apparatus conforming to the different standards.
Parameter:
| Load plate | 300mm |
| Hydraulic jack max.load | 10T |
| Hydraulic jack journey | 120mm |
| Span | 3000mm |
| Electric oil pump rated pressure | 70MPa |
| Pressure range | 0-25MPa |
| Displacement range | 0-10mm |
| Use engine oil | number 15 engine oil |
| Usetemperature environment | 5-45°C |
