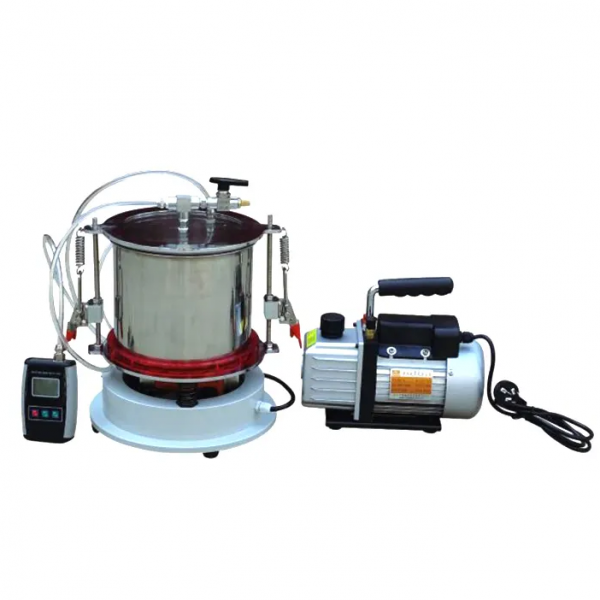

Bitumen Vacuum Pycnometer Asphalt Specific Gravity Tester
- Description
- Inquiry
Introduction:
Bitumen Vacuum Pycnometer Asphalt Specific Gravity Tester Transparent plexiglass made, complete with valve and gauge, it is utilized for a rapid determination of asphalt content, bulk specific gravity of aggregates, the max. theoretic specific gravity of bituminous uncompacted road mixtures and the percent air voids in compacted mixtures.
Parameter:
Product name | Bitumen Vacuum Pycnometer |
Power supply voltage |  220v±10℅ 50Hz |
Vibration motor input power | 40w |
Digital vacuum gauge | negative pressure range: 0 — -100kpa |
Experimental requirements | 3.7Kpa(±0.3) |
Working method | Manual |
Container volume | 10000ml (stainless steel barrel / acrylic barrel) |
Vibration mode | continuous vibration |
