Dynamic Fatigue Tester Dynamic Fatigue Testing Machine
Dynamic Fatigue Testing Machine聽
Application:Metals, non-metallic materials and small movable member, the static mechanical properties
Testing Type:It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.
- Description
- Inquiry
Feature:
This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.
Fully digital measurement and control system implementation force, displacement, deformation closed loop control, test software under WINDOWS Chinese working environment, powerful data processing capabilities, test conditions and test results are automatically saved, displayed and printed. Fully integrated into the computer-controlled test procedure, the test machine is a research institutes, metallurgy building, defense industry, universities, machinery manufacturing, transportation and other industries ideal cost-effective test systems.
Application:
Metals, non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.
Parameter:
| Model | PWS-50 | PWS-100 | PWS-200 | PWS-500 | PWS-750 | PWS-1000 | |
| Load聽Capacity(kN) | Static | 50 | 100 | 200 | 500 | 750 | 1000 |
| Dynamic | 卤40 | 卤80 | 卤160 | 卤400 | 卤600 | 卤800 | |
| Measurement聽 Accuracy | Load | 卤1.0%聽of聽Reading | |||||
| Displacement | 卤1.0%聽FS聽of聽Each聽File | ||||||
| Deformation | 卤1.0%聽of聽Reading | ||||||
| Function聽Generator聽 Range聽Of聽Frequency | 0.001~50聽Hz | ||||||
| Stroke聽of聽Piston(mm) | 卤50 | 卤50 | 卤75 | 卤75 | 卤75 | 卤75 | |
| Distance聽Between聽Columns | 500mm | 565mm | 700mm | 820mm | 820mm | 1000mm | |
| Distance聽Between聽Grips | 50~600mm | ||||||
Related Products

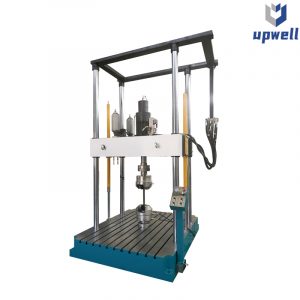

Fatigue Dynamic and Static Universal Testing Machine
