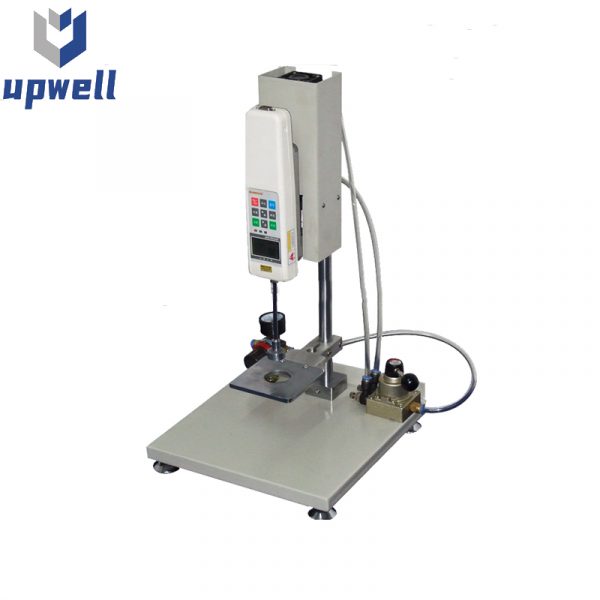

Pneumatic Fabric Stiffness Tester

ASTM D 4032 Pneumatic Fabric Stiffness Tester

Pneumatic Fabric Stiffness Tester is used to determine fabric stiffness according to ASTM circular bend test method.

Related Testing Standard:ASTM D 4032

Categories: Tags: ,
  • Description
  • Inquiry

Pneumatic Fabric Stiffness Tester is used to determine fabric stiffness according to ASTM circular bend test method.



  • The plane is equipped with pneumatic piston, controller and battery-driven digital thrust table
  • Smooth-polished chrome-plated steel platform.
  • Digital display force gauge reach to 500N
  • Three units switchable, kgf, N and lb.



Model0270F
Size of sample102 x204mm
Capacity500 N
Test platform102 x102mm, diameter of center hole  is 38.1 mm (1.5 “)
Loading headdiameter of 25.4 mm (1 “)
Trip57 mm (2.25 “)
Loading speed1.7 ± 0.3 s / 57 mm
Loading pressure324 Kpa (psi)
Dimension30 x30x48cm
Weight15 Kg
