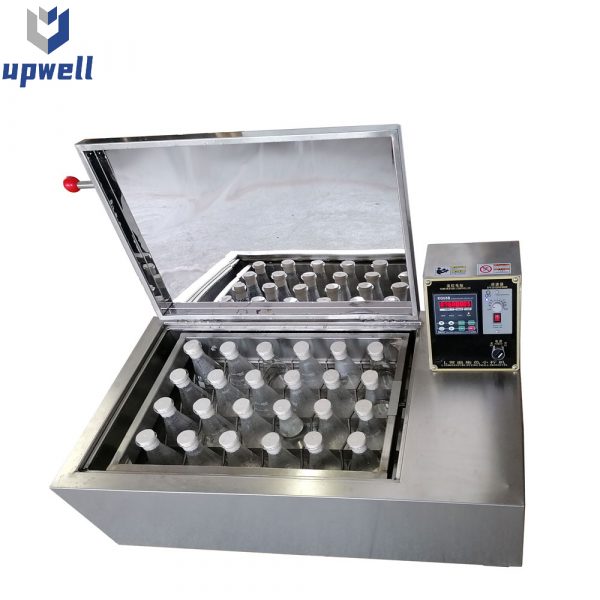

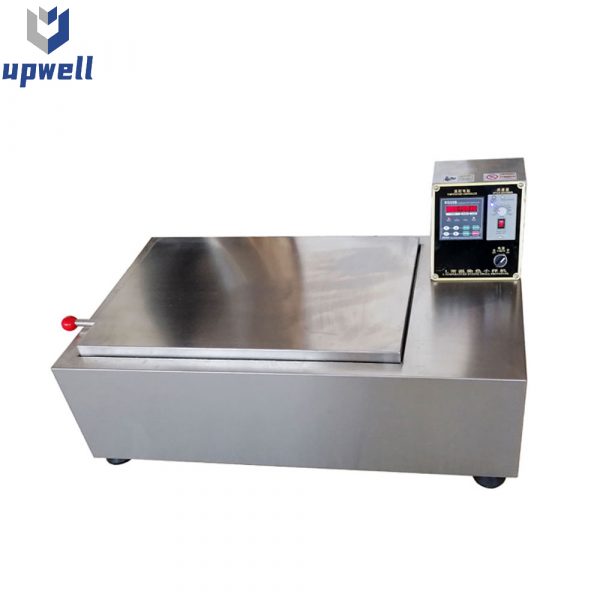

Fabric Temperature Control Incubator Shaker

 Incubator Shaker is a normal temperature oscillation type small size dyeing machine, used for simulating the dyeing in actual production process. It can perform evenly mixing of the recipes simultaneously, so that allows more spare time of the operator to increase efficiency.

  • Description
  • Inquiry

Application of Incubator shaker:



 Incubator Shaker is a normal temperature oscillation type small size dyeing machine, used for simulating the dyeing in actual production process. It can perform evenly mixing of the recipes simultaneously, so that allows more spare time of the operator to increase efficiency.



Features of Incubator shaker:



l   Stainless steel construction;

l   Good flexible beaker holder, can contain 12/24 pcs of 250ml conical flask;

l   Fitted two heaters, digital electronic temperature controller incorporating over-temperature protection;

l   PT100 temperature sensor, high accuracy temperature control;

l   Programmable rate of rise temperature, up to 9 programs, can preset rate of rise temperature,

         temperature keeping time, etc.



Key Specification of Incubator shaker:



Model No.AS-12AS-24
Beaker number1224
Temperature range20~99℃
Temperature accuracy±1℃
Temperature increment1~4℃/min
Timing range0~99min
Liquor ratio1:5~1:100
Oscillating speed0~160RPM, adjustable
Amplitude42mm
Beaker volume250ml
Power supplyAC220V, 50Hz, 3kwAC220V, 50Hz, 4kw
Instrument size695×530×320mm980×530×320mm
Instrument weight45kg65kg
