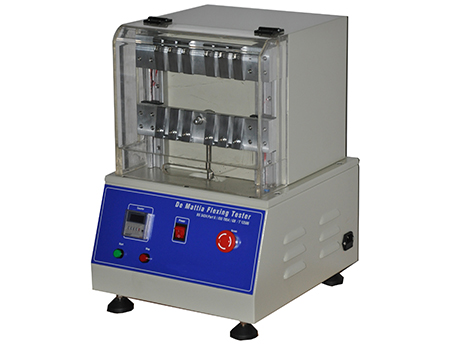

Fabrics Coat De Mattia Flexing Resistance Tester Comply ISO 7854

Introduction:

Fabrics Coat De Mattia Flexing Resistance Tester Use De Mattia method to assess the resistance of coated fabric to damage by repeated flexing.

Principle:

A rectangular strip of coated fabric is folded twice so that its long edges meet forming a strip measuring 125 125 mm.This folded strip is mounted between a pair of flat grips,one of which reciprocates,causing the folded test piece to be bent outwards five times per second.This high-speed folding of the test piece is continued for a pre-set number of cycles.

Equipped with acrylonitrile plastic cover for safe operation. `

Parameter :

1.Workstations : 6 group; Optional 12 group

2.Speed : 300±12 rpm

3.Clamp width : 22 mm

4.Running trajectory: vertical straight motion

5.Vertical stroke : 57 mm±0.5 mm

6.Grips spacing : from 13±0.5 mm to 70±1 mm

7.Sample size : (37.5±1)×125 mm

8.Power supply : AC220V,50/60 Hz,3A

9.Weight : 35 kg (TN11368-A) ; 45 kg (TN11368-A12)

10.Dimension : 40×36×55 cm (6 groups) ; 40×36×85 cm  (12 group)
