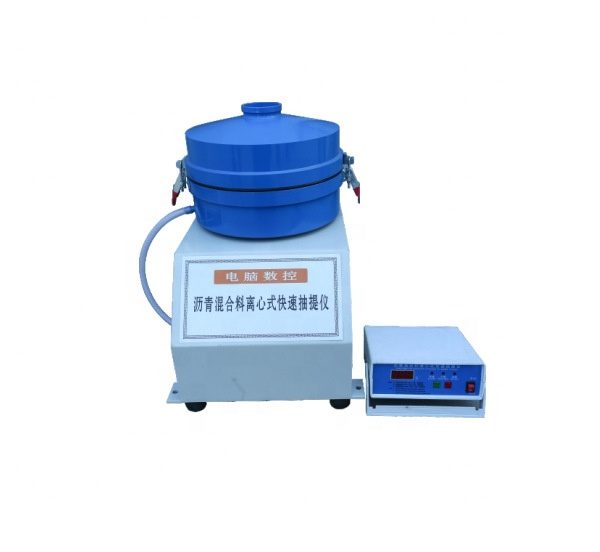

High Speed Digital Display Asphalt Bitumen Centrifuge Extractor Tester
High Speed Digital Display Asphalt Bitumen Centrifuge Extractor Tester is used for the determination of bitumen percentage in bituminous mixtures.
All models comprise a removable precision-machined rotor bowl housed in a cylindrical aluminum box. They are driven by an electric motor fitted with an AC drive (inverter) with the double function of speed control up to 3000 r.p.m.
The control panel includes the Start/Stop button, speed control knob, and digital display.
The centrifuge extractor is complete with filter paper and bowl.
- Description
- Inquiry
High Speed Digital Display Asphalt Bitumen Centrifuge Extractor Tester is used for the determination of bitumen percentage in bituminous mixtures.
All models comprise a removable precision-machined rotor bowl housed in a cylindrical aluminum box. They are driven by an electric motor fitted with an AC drive (inverter) with the double function of speed control up to 3000 r.p.m.
The control panel includes the Start/Stop button, speed control knob, and digital display.
The centrifuge extractor is complete with filter paper and bowl.
Feature
1. 3000 r/min high speed, low noise and uniform speed.
2. The containers are polished and the sample containers and centrifugal separators are well-made. After static and dynamic balance correction, the operation is stable and the test process is fast.
3. Desktop integrated machine. novel design, compact structure, small size, high performance.
4. With the advantages of simple detection process, fast separation speed, convenient operation, low noise and easy maintenance.
Parameter:
1, the capacity of the material bowl: 1500g/3000g
2, speed: 3000r/min
3. The inner diameter of the pot: 280mm
4, the ambient temperature is less than or equal to 35 DEG C:
5, relative humidity: less than 85%
6, the whole power consumption: 550W/750W
7. The net weight of the instrument: 60Kg
8. Power supply voltage: AC220V/50HZ
9. Shape size: 600X440X620mm
