Applications:

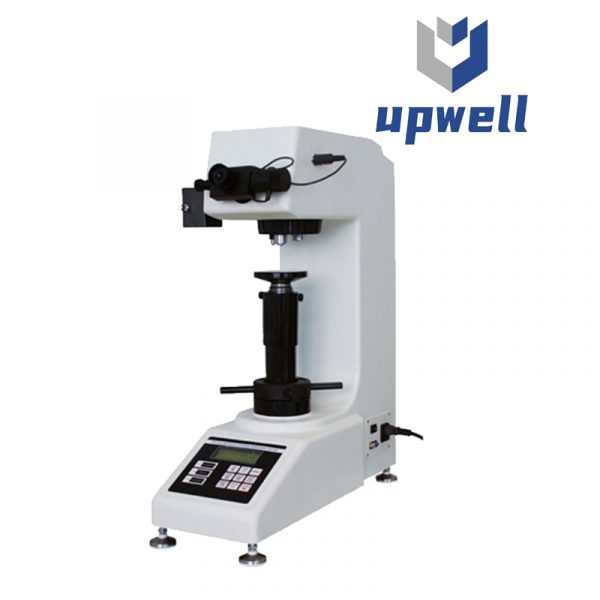

HVS-10/10P/10Z Macro Vickers Hardness Tester is a half automatic and intelligent Vickers hardness testing machine. It adopts the close-loop force sensor to replace the quality weight, it makes the test more accurate. It is auto loading, dwell and unloading.



Technical specifications

ModelHVS-10HVS-10PHVS-10Z
Test Forcekgf0.3, 0.5, 1, 2, 2.5, 3, 5, 10
N2.94, 4.9, 9.81, 19.61, 24.52, 29.42, 49.03, 98.07
Testing Range8 HV – 2900 HV
Loading ControlAutomatic (loading, dwell, unloading)
Magnification of MicroscopeObservation: 10×; Measurement: 40×
Magnification of Eyepiece10× Eyepiece
Dwell TimeAdjustable 0-60s
IlluminationAdjustable LED light- source
Test result outputNoneMini-PrinterMini-Printer
Auto Turn TurretNoneNoneAuto
Max Height of Specimen170mm
Instrument Throat130m
Power SupplyAC 220V, 50Hz
Execution StandardGB/T4340.2, EN-ISO6507, ASTM E10-18, ASME-384
Overall Dimension535×225 ×580mm
Net Weight50kg
