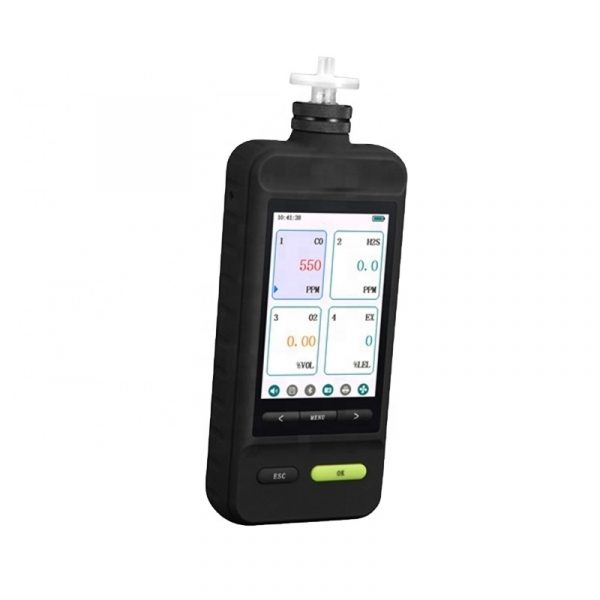

Internal Pump Handheld 4 in 1 NH3 H2S CO CH4 Multi Gas Analyzer
- Description
- Inquiry
聽Feature:
3.5 inch high-definition color screen
1). The outer casing is made of aviation wear-resistant material
2). Adopt 3.5-inch high-definition color screen, high resolution, wide viewing angle
Flashlight function
Exclusive design – a flashlight function that illuminates the darkness for certain workplaces and聽make聽Underground work easier
Multi-gas test, display mode switch (USED FOR MULTI-GAS)
It聽can simultaneously detect up to 1-4聽gas concentrations
Data show that the gas concentration, gas concentration curve in real time display mode can be arbitrarily switched
Flexible and adjustable pumping system
Built-in gas sampling pump, the pump’s flow rate is adjustable in ten steps, which can customize the gas detection flow for different detection environments.
Multi-layer filter
Three-layer filter unit is built in to efficiently filter oil, water, dust and other impurities. Even in the most demanding industrial environment, the test results can still be trusted.
Multiple gas display units
Multiple gas display units聽can be聽switched, converted the concentration value automatically
Powerful, more user-friendly operation
1).聽With timed shutdown function, intelligent settings
2).聽Sensor overload automatic protection
3).聽USB charging interface design can be charged anytime, anywhere
Optional function
1).聽Optional fall alarm function to ensure the safety of underground workers is more secure
2). Optional聽8G large-capacity memory card, support one-click download function,聽if with 4 kinds of gases,聽Storage interval聽time is 5s, can be used for 7 years! And this function is standard provided if the detector with optional聽air sampling rod
3). Optional PC storage software download,聽analysis聽and聽storage data, with聽excel聽format
4).聽Optional external Bluetooth printer
聽
Parameter:
Detecting gas | NH3, CO, H2S, CH4 |
Sensors | catalytic combustion(CH4),Electrochemistry(H2S,NH3,CO) |
| Measure range | 0-100ppm,0-1000ppm,0-100ppm,0-4%vol |
Resolution | 聽0.1ppm ,1ppm, 0.1ppm,1%vol |
Display | formula, unit, measurement value, time, battery, alarm status, data recording status, historical data curve, pump working state, alarm status, etc |
Sampling | Built-in pump suction sampling, select high-quality micro pump, small noise and vibration. Suction can reach 1L/min. |
Alarm | Buzzer, low battery alarm, White flash and alarm status on display |
Data storage | Various storage way are optional, large capacity of 8G memory card are optional. Support one key download function, optional PC storage software download and analysis data, storage data format diversification, |
Data transmission | USB interface data transmission, with the upper computer software, can download and print data, support the memory card transmission data in one key |
Print function(Optional) | Optional with internal portable printer or external bluetooth printer |
Print content(Optional) | Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
Charger | Standard Mini-USB charging port. The commonly used car charger, mobile power supply and common mobile phone charging line can be charged for it |
Language | Chinese/English |
Wireless network (optional) | Bluetooth, Zigbee |
| Network frequency | 2.4G high frequency. |
wireless transmission distance | Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m. |
