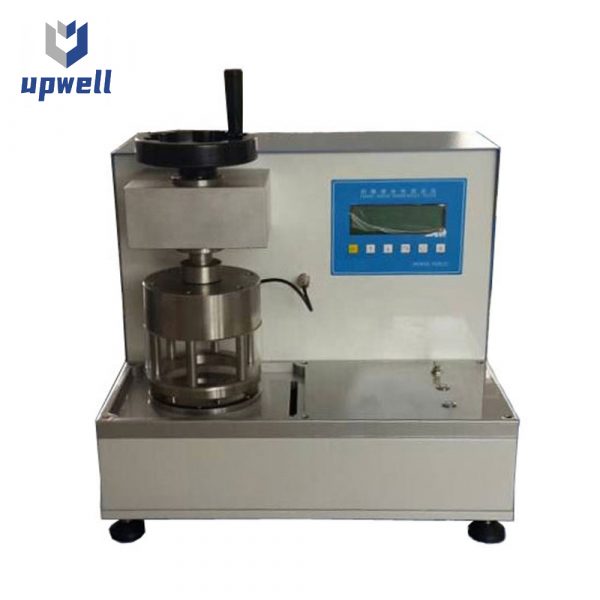

LED Hydrostatic Head Tester Digital Fabric Water Permeability Tester

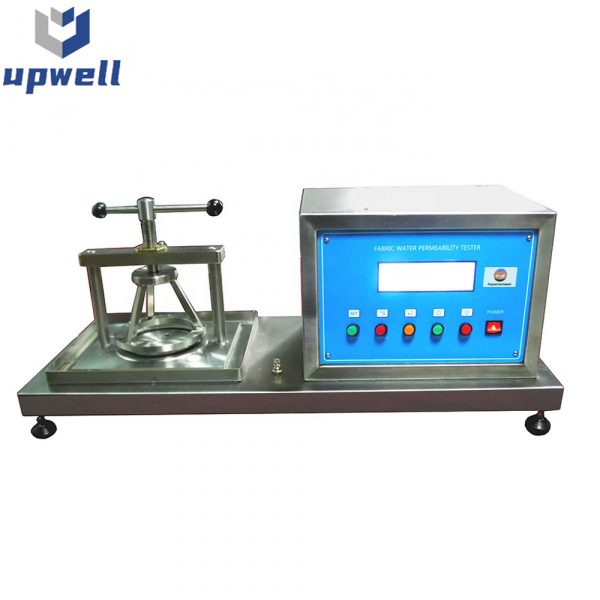

Hydrostatic Head Tester Digital Fabric Water Permeability Tester

ISO 811 Hydrostatic Head Tester Digital Fabric Water Permeability Tester

Hydrostatic Head Tester is applied to determine the resistance of fabrics (such as canvas, tarpaulin, manta, tent cloth, rain-proof garments) to water penetration under hydrostatic pressure whilst firmly clamped in the test rig of 100cm2 area.

Related Testing Standard: ISO 811 AATCC127

Description
Inquiry

APPLICATION:

FEATURES

1 Made of stainless steel, durable in use;

2 Use industrial grade pressure sensor to get stable test result with high repeatability;

3 Pressure applied on specimen pass through a buffer device to effectively avoid over-pressured;

4 Hydrostatic pressure with range from 0 to 200kPa (2000cmH2O/mbar);

5 LED illumination in clamp, convenient to observe the test process (Only for YG812C);

6 With level adjusting device.

Hydrostatic Head Tester Digital Fabric Water Permeability Tester Parameter :

Model No.	Hydrostatic head tester	LED TYPE Hydrostatic head tester
Display mode	LCD display
Measurement range	0 ~ 200kPa (2000cmH2O/mbar)
Pressure accuracy	±1% F.S.
Resolution	±0.01kPa
Test area	100cm2
Loading speed	1.0±0.05kPa/min(10±0.5cmH2O/min), 6.0±0.3kPa/min(60±3cmH2O/min), 10±0.5kPa/min(100±5cmH2O/min), 100±5kPa/min(1000±50cmH2O/min)
Power supply	AC220V 50Hz
LED illumination	With	Without
Package dimension (L×W×H)	820×660×800mm	930×400×380mm
Gross weight	110kg	38kg
