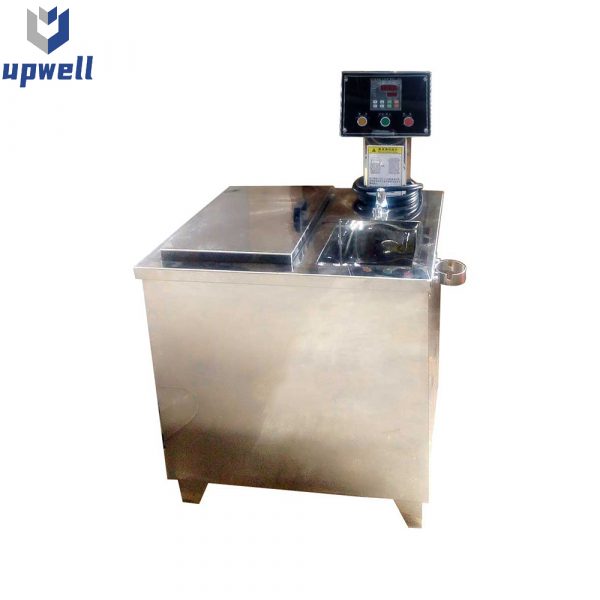

Laboratory Textile High Temperature Dyeing Machine
Laboratory Textile High Temperature Dyeing Machine is a universal laboratory dyeing apparatus for formulation of production recipes. It is applicable to dye knitted fabric, woven fabric, yarn, loose fibers or zipper. It has a single dyeing bath with hinged lid and magnetic-valve-controlled water cooling coil and a washing sink.
- Description
- Inquiry
Application:Â
Laboratory Textile High Temperature Dyeing Machine is a universal laboratory dyeing apparatus for formulation of production recipes. It is applicable to dye knitted fabric, woven fabric, yarn, loose fibers or zipper. It has a single dyeing bath with hinged lid and magnetic-valve-controlled water cooling coil and a washing sink.Â
Features:
1Â Â Â Â Â Â Stainless steel construction, good heat-insulated performance;
2Â Â Â Â Â Â Glycerin as heating medium to achieve high temperature;
3Â Â Â Â Â Â Programmable temperature controller;
4Â Â Â Â Â Â Â Magnetic valve for controlling water cooling;
5Â Â Â Â Â Â Â Single dyeing bath with hinged lid and one washing sink;
6Â Â Â Â Â Â Â Stainless steel beaker, easy to clean;
Key Specification:Â
| Model No. | HS-12A | HS-12B | HS-24A | HS-24B |
| Beaker volume | 250ml | 450ml | 250ml | 450ml |
| Beaker qty | 12pcs | 12pcs | 24pcs | 24pcs |
| Max. dyeing temperature | 135oC | |||
| Thermostatic time | 0~99min | |||
| Max. program | 10 | |||
| Steps for each program | 10 | |||
| Mini. liquor ratio | 1:5 | |||
| Heat medium | Glycerin | |||
| Rotating speed | 42rpm | |||
| Power supply | AC380V, 50Hz, 3 phase | |||
| Dimension | 920*650*1200mm(L*W*H) | |||
| Weight | 170kg | |||
