Applications:

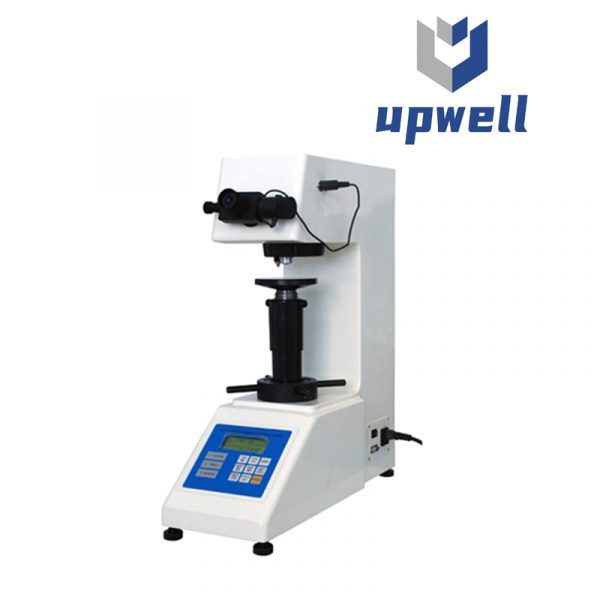

601MHB Low Load Digital Brinell Hardness Tester adopts is a half automatic and intelligent Brinell hardness testing machine, it adopts the pressure sensor instead of traditional quality weight, this innovative design makes the instrument more accurate. It is applied at workshops and measurement department for determining the Brinell hardness of the ferrous and non-ferrous metals.

Technical specifications

Test Force49.03N (5kgf), 61.29N (6.25kgf),

98.07N (10kgf), 153.2N (15.625kgf),

294.2N (30kgf), 306.5N (31.25kgf),

612.9N (62.5kgf)

Testing Range8-650 HBW
Hardness DisplayLCD Display
Magnification of Microscope50/100× Digital Microscope
Max Height of Specimen170mm
Instrument Throat130mm
Power SupplyAC220V/50Hz
Execution StandardGB/T230.2, JIG112, EN-ISO6508, ASTM E-18
Overall Dimension530×210 ×630mm
Net Weight50kg



Accuracy of Brinell Hardness Testing

Hardness RangeMax. ToleranceRepetition
HBW≤125±3%±3.5%
125<HBW≤225±2.5%±2.5%
HBW＞225±2%±2%
