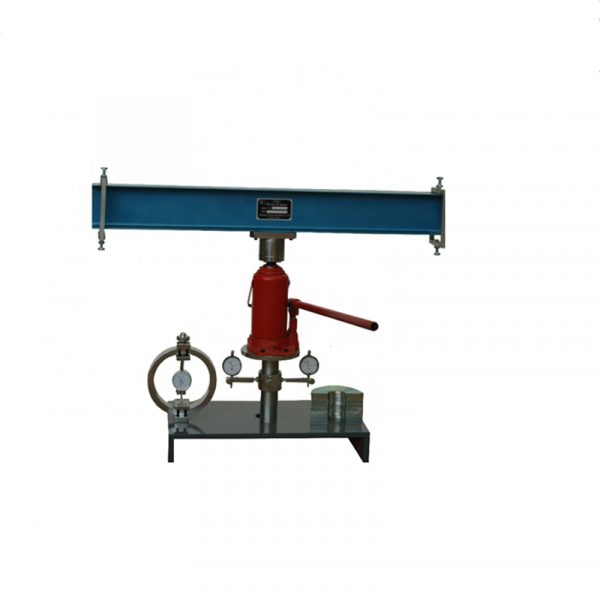

On Situ Soil Field CBR Test Machine
On Situ Soil Field CBR Test Machine/ Soil Bearing Capacity Tester聽Use for highway spot to test CBR value of various soil material
The machine is suitable for highway scene determination of various soil base material field CBR. The working principle of the instrument is the use of rear axle load of not less than 60KN truck, with Jack loading, through penetration rod measured quantity of penetration and dynamometer measured load weight, the soil CBR value calculation of field.
- Description
- Inquiry
On Situ Soil Field CBR Test Machine/ Soil Bearing Capacity Tester聽Use for highway spot to test CBR value of various soil material
The machine is suitable for highway scene determination of various soil base material field CBR. The working principle of the instrument is the use of rear axle load of not less than 60KN truck, with Jack loading, through penetration rod measured quantity of penetration and dynamometer measured load weight, the soil CBR value calculation of field.
Parameter:
| Hydraulic jack | 100KN |
| Capacity | 60KN |
| Penetrating rod | 脴50mm x Length 200mm |
| Bearing plate | 1.25kg/pcs, four pcs |
