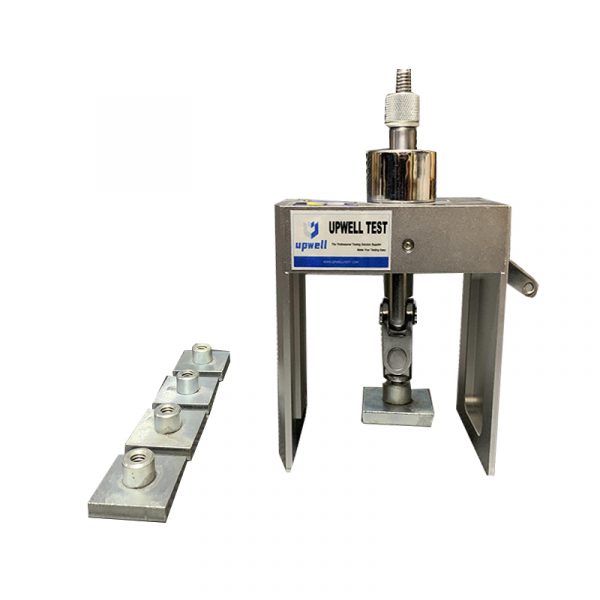

Paint Coating and Various Plates Pull Off Bond Strength Tester
Paint Coating and Various Plates Pull Off Bond Strength Testing Instrument is used to test the bonding strength of decorative bricks, tiles, mosaics, various plates, paints, coatings, exterior wall insulation materials (EPS panels, SPS panels) and also be used to test the bonding strength of various exterior wall building materials and adhesives.
- Description
- Inquiry
Paint Coating and Various Plates Pull Off Bond Strength Testing Instrument is used to test the bonding strength of decorative bricks, tiles, mosaics, various plates, paints, coatings, exterior wall insulation materials (EPS panels, SPS panels) and also be used to test the bonding strength of various exterior wall building materials and adhesives.
Parameter
0~6.000KN/3.75Mpa | |
Display | Mpa and Kn |
Accuracy | 0.001KN |
Hollow cylinder stroke | 10mm |
Instrument structure | One-piece |
Main material | Alloy material |
Body weight | 2.0kg |
Configurator display mode | Digital |
Data store | 200 items |
Data check and delete function | yes |
Peak holding function | yes |
LCD lighting function | yes |
Battery | lithium battery |
Polyline correction | 10 section |
USB charging | yes |
