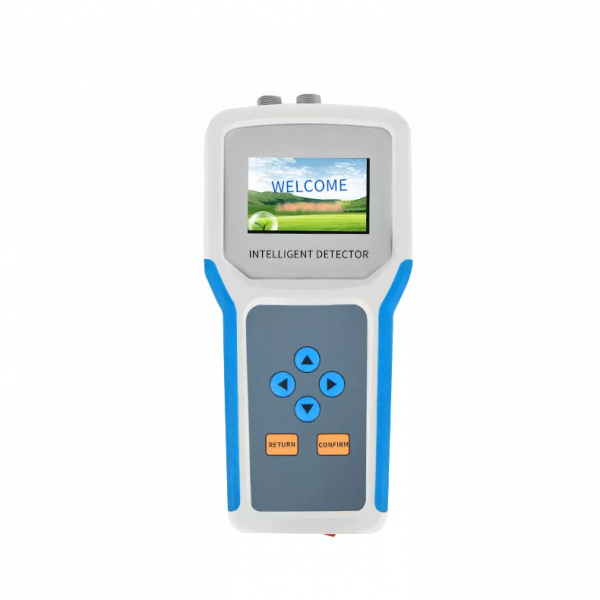

Portable Soil Moisture Temperature and Salinity HP Meter

The soil moisture, temperature and salinity PH tester adopts an integrated structure design, which can quickly and accurately measure the moisture content, temperature, electrical conductivity (salt), and pH of the soil. It can measure the moisture content, temperature, salinity and pH of multiple sample plots and different soil depths. Rapid detection and long-term continuous monitoring. It is widely used in soil moisture detection, dry farming and water-saving irrigation, precision agriculture, forestry, geological prospecting, plant cultivation, water conservancy, environmental protection and other fields.

Feature:

1. This machine is compact, beautiful, simple and convenient to operate, reliable in performance, and extremely convenient to carry in the field. After the host is connected to the sensor, the records can be stored manually or the sampling interval can be set arbitrarily through the host to automatically store the recorded data. 　　

2. Large-screen color LCD display, track and record the value, number of groups, and low-voltage warning of each measured environmental factor throughout the process. The host has a built-in large-capacity memory that can store 300,000 pieces of data. It has the function of automatically storing and protecting power off data. 　　

3. After each sensor is inserted into the host, the host has an automatic identification function, and the sensor has good consistency, and the sensors can be combined according to the needs. The sensor interfaces of different parameters can be converted to each other, which has no effect on the measurement accuracy. 　　

4. The instrument has a multi-channel automatic detection extension function, which can realize simultaneous detection of multiple sensors connected at the same time. 　　

5. The upper computer software is powerful, and the data in the record can be exported to the computer through the USB interface at any time, and can be stored as an EXCE table file to generate a data curve for further data processing by other analysis software. It has the function of setting the coloring of the over-limit area, and the pre-warning of the over-limit data changes color, which can be used as a basis for environmental assessment. 　

Parameter:

Measurement parameters: soil volumetric water content

Unit: % (m3/m3)    Test sensitivity: ±0.01% (m3/m3);

Range: 0-100% (m3/m3). Measurement accuracy: 0-50% (m3/m3)) ± 2% (m3/m3);

    50-100% (m3/m3)) ± 3% (m3/m3); . Resolution: 0.1%

Soil temperature range: -40-120 ° C. Measurement accuracy: ± 0.2 ° C. Resolution: ± 0.1 ° C

Soil salinity range: 0-20ms. Measurement accuracy: ±2%. Resolution: ±0..1ms

PH measurement range: 0-14 resolution: 0.1 Measurement accuracy: ± 0.2%

Integrated electrode: soil moisture, soil temperature, soil salinity, three-in-one, integrated into one sensor;

Ph composite electrode: the electrode is a composite electrode, automatic temperature compensation, the test is more stable and more accurate.

Power supply mode: Lithium battery power supply, AC power two ways. Software: PC software free
