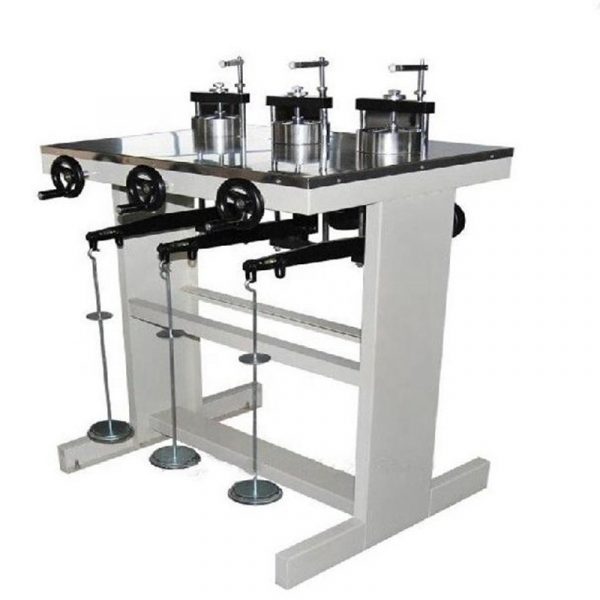

Pressure Triplex Soil Consolidation Tester
Low Medium High Pressure Triplex Soil Consolidation Tester聽Designed to provide reliable results from a unit which is compact without sacrificing accuracy and repeatability. It comes with triple beam ratio and compact design ensures space saving.
It is used in soil compression test to detect the relationship between soil pressure and deformation, calculate the unit deposition, compression index, resilience index and consolidation coefficient of soil, etc.
- Description
- Inquiry
Low Medium High Pressure Triplex Soil Consolidation Tester聽Designed to provide reliable results from a unit which is compact without sacrificing accuracy and repeatability. It comes with triple beam ratio and compact design ensures space saving.
It is used in soil compression test to detect the relationship between soil pressure and deformation, calculate the unit deposition, compression index, resilience index and consolidation coefficient of soil, etc.
Parameter:
| Specimen area | 30cm2 ,50cm2 |
| Leverage ratio | 12:1 ,10:1 |
| Consolidation container | One beam, two beams, three beams |
| Frame | Steel structure |
| Pressure range | Low Pressure:12.5 Kpa to 800 Kpa/30CM虏, 12.5 Kpa to 400 Kpa/50CM虏 |
| Mid Pressure:12.5 Kpa to 1600 Kpa/30CM虏, 12.5 Kpa to 800 Kpa/50CM虏 | |
| Load level(Kpa) | 12.5, 25, 50, 100, 200, 300, 400, 800, 1600, 3200 |
