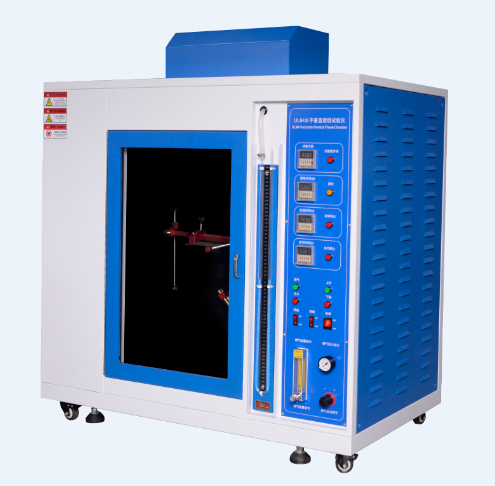

UWP-UL94 HORIZONTAL VERTICAL FLAME CHAMBER

This tester is applicable to test and assess the burning characteristics of plastic material is according to the American UL94 standard and GBT2408 a parts for equipment and instruments in plastic material flammability test of relative clauses specified in the design and manufacturing, plastic parts of equipment and utensils horizontal, vertical flammability test, and equipped with gas flowmeter, adjust the flame size, The operation is simple and safe. This instrument can evaluate the flammability of materials or foamed plastics such as V-0, V-1, V-2, HB, 5V, HF-1, HF-2, HBF.

Description
Inquiry

Product introduction :

Reference Standard:

Ul94Flammability Test
Gbt2408-2008《Horizontal And Vertical Methods For Determination Of Plastic Combustion Performance》
Iec60695-11-10《Combustion Fire Test》

Technical parameters :

Box volume volume	≥0.5cm³，Observation door with glass
Appearance of size	L1100W700H1100mm
Flame time	0 ~ 99min 99 s set
Residual flame time	0 ~ 99min 99 s set
The rest of the burn time	0 ~ 99min 99 s set
Combustion angle	20 °, 45 °，90°（0°） Adjustable
Burner size parameters	² Nozzle diameter:Ø9.5mm ² Effective length of nozzle:100mm ² There are air conditioning holes
Flame height	According to the standard requirements can be adjusted from 20mm to 175mm
The way of sample	Motor drives front and back right and left aligned splines
Product features	Additionally, it is equipped with lighting device, gas pumping device, gas flow regulating valve, gas pressure gauge, gas pressure regulating valve, gas flowmeter, gas U-shaped pressure gauge and sample fixture
power	AC 220V，50Hz
