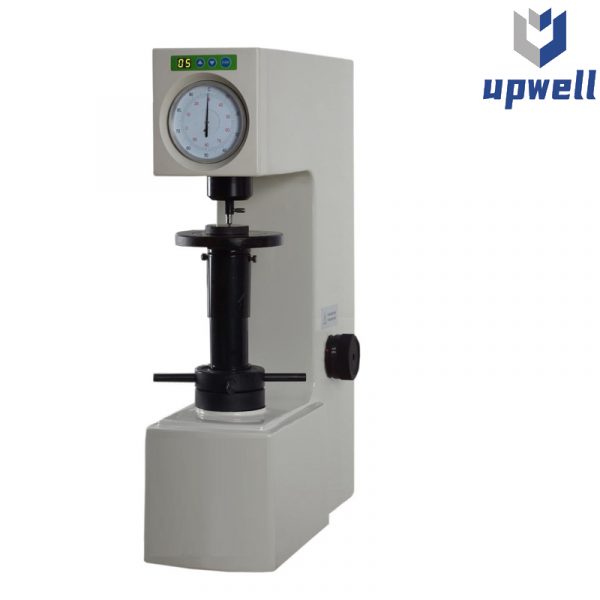

XHR-150 Plastics Rockwell Hardness Tester

XHRS-150 Digital Plastics Rockwell Hardness Tester
HRMS-45 Digital Superficial Rockwell Hardness Tester
XHR-150 Plastics Rockwell Hardness Tester

XHR-150 Plastics Rockwell Hardness Tester

 XHR-150 Plastics Rockwell Hardness Tester

Categories: Tags:
  • Description
  • Inquiry

Application

XHR-150 Plastic Rockwell Hardness Tester is used to measure the hardness of plastic materials. Rockwell hardness is generally chosen for ‘harder’ plastics such as nylon, polycarbonate, polystyrene, and acetal where the resiliency or creep of the polymer is less likely to affect the results.

Technical specifications

Rockwell ScalesHRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR
Initial Test Force10kgf (98.07N）
Test Force60kgf (588.4N), 100kgf (980.7), 150kgf (1471N)
Dwell TimeAdjustable 1-60s
 Hardness IndicationAnalogue Display
Loading ControlMotorized
Max Height of Specimen175mm
Instrument Throat165mm
Execution StandardGB/T230.2, JIG112, EN-ISO6508, ASTM E-18
Overall Dimension525×215 ×700mm
Net Weight78kg
