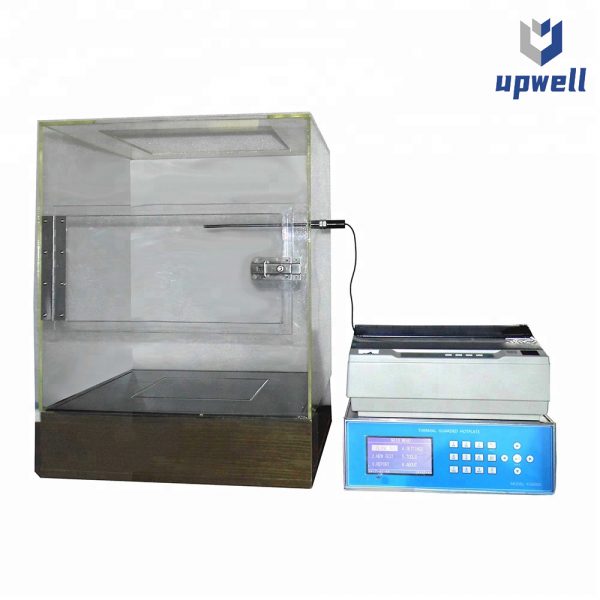

Fabric Flat Plate Warmth Retention Tester

ASTM D1518 JIS L1096 Fabric Flat Plate Warmth Retention Tester

Fabric Flat Plate Warmth Retention Tester applies to determine the thermal resistance and thermal conductivity of various textiles.

Related Testing Standard:ASTM D1518 JIS L1096

Categories: Tags: , ,
  • Description
  • Inquiry

Application:



Fabric Flat Plate Warmth Retention Tester applies to determine the thermal resistance and thermal conductivity of various textiles.



Features of flat plate warmth retention tester:



l Specimen board, protection board, and bottom board are blocked off by heat-insulating material and covered by translucent cover to ensure the accuracy of the test temperature.



l Temperature of specimen board, protection board, bottom board and environment can be duly displayed on LED panel.



l Heating periodicity presettable, duly displayed on LED panel.



l Warm-up time presettable, and the warm-up time and test time duly displayed on LED panel.



l With the function of audible warning after finishing each times of black test or specimen test.



l After each test, Warmth Retention Rate, Heat Transfer Coefficient, and CLO Value can be displayed on the LED panel after each test and printed out by stylus printer (LQ-300K or TM-300K).





 flat plate warmth retention tester Parameter:



TemperatureRT-49.9°C
Readability0.1°C
Temperature accuracy±0.5°C
Warn-up time setting range0.1~99.9min(presettable)
Specimen dimension250mm×250mm
Cycle   times1~9 times(presettable)
Specimen board dimension250×250mm
Power supplyAC220V 50Hz 240W
Dimension520×640×700mm(L×W×H)
Instrument weight60Kg
