ASTM D813/D430 BS 903, BS ISO123 Leather Fatigue testing machine

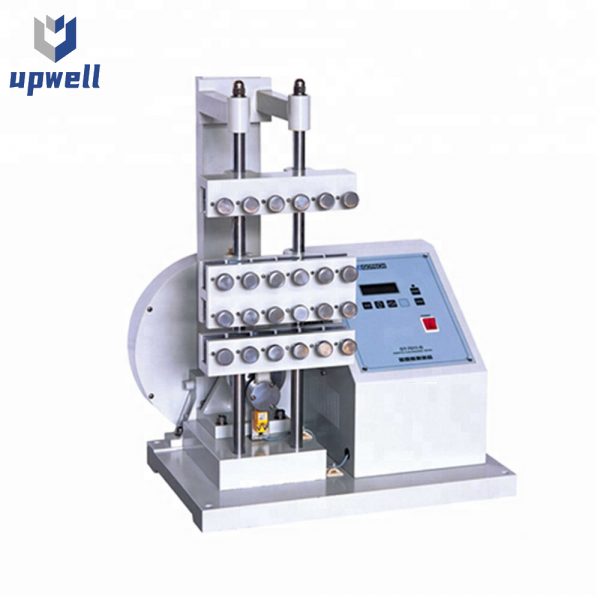

Leather Fatigue testing machine  is used to determine the ability of soft rubbers, leathers, artificial leathers and EVA soles and other materials to resist dynamic fatigue.
Related Testing Standard:ASTM D813/D430 JIS-K6301 BS 903, BS ISO123 BS 903, BS ISO123
- Description
- Inquiry
Application:Â
Leather Fatigue testing machine  is used to determine the ability of soft rubbers, leathers, artificial leathers and EVA soles and other materials to resist dynamic fatigue. The specimen is mounted to the movable clamps and flexed constantly to observe the resistance to crack, in other words, to measure its flex-endurance.
Leather Fatigue testing machine Parameter:
| Fatigue testing machine | 9630A | 9630B |
| Specifications of specimen | (140~155)×(20~25)×6mm | |
| Space between clamps | 19~75mm, 57~75mm | 19~75mm, adjustable |
| Working positions | 6 (3 or 12 can be customized) | |
| Test speed | 300±10cpm | 50~350±10cmp, adjustable |
| Display | 6-digital counter | LCD |
| Test stroke | 44±1mm | |
| Power supply | AC220V 50Hz | |
| Dimensions | 350×600×750mm (L×W×H) | 700×525×535mm (L×W×H) |
| Weight | Approx. 78kg | |
