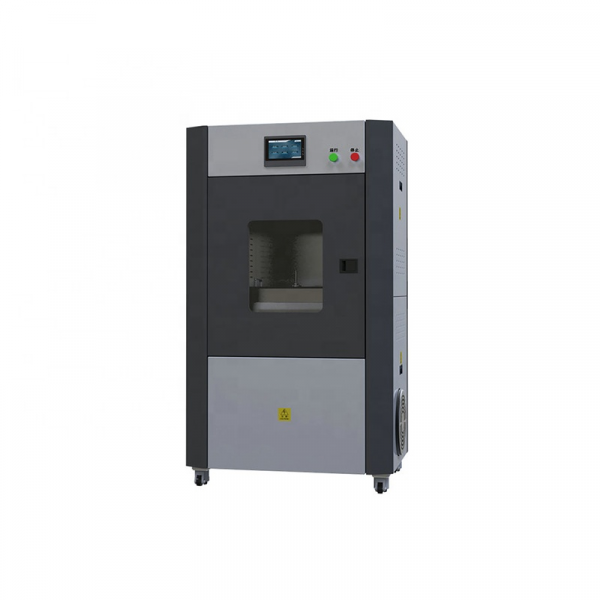

ASTM E 96 Automatic Textile Fabric Moisture Permeability Test Chamber Fabric Water Vapor Transmission Tester

ASTM E 96 Automatic Textile Fabric Moisture Permeability Test Chamber Fabric Water Vapor Transmission Tester  Used for moisture permeability test of various fabrics, film materials and coated fabrics.



Feature:
1, apply a variety of standards and measurement methods.
2. Rotary sample holder, adjustable speed, uniform test than fixed sample holder.
3, the wind speed is adjustable, the use of imported wind speed sensor calibration, speed accuracy and stability.
4, temperature and humidity control using PID algorithm, small fluctuations, effectively prevent temperature and humidity overshoot; with temperature and humidity calibration function, can well avoid the sensor bias caused by long-term use.
5, high-precision temperature and humidity sensors, test data stability, high precision.
6, SCM control, color touch screen operation, modular design, temperature and humidity digital settings, intelligent control, real-time display of temperature and humidity and time.
7. Input parameters in the color touch screen to calculate WVT, WVP and PV values.
8, the instrument is equipped with PC software, can record temperature and humidity curve, easy to calculate and print a large number of data reports.



Main Parameters:
1. Adjustable temperature control accuracy/resolution: 18-50°C±0.5°C/±0.1°C
2. Adjustable humidity relative humidity: 40-95% RH, ±1% RH
3, the box airflow speed: 0.1 ~ 0.8m / s
4, the number of layers and number of moisture permeable cups: 8 pcs, single layers
5, test units: English, metric
6, display mode: color touch screen
7, the use of power: AC220V 50HZ 3500W
8, the appearance size: 740 × 670 × 1185mm
9, weight: 200kg
