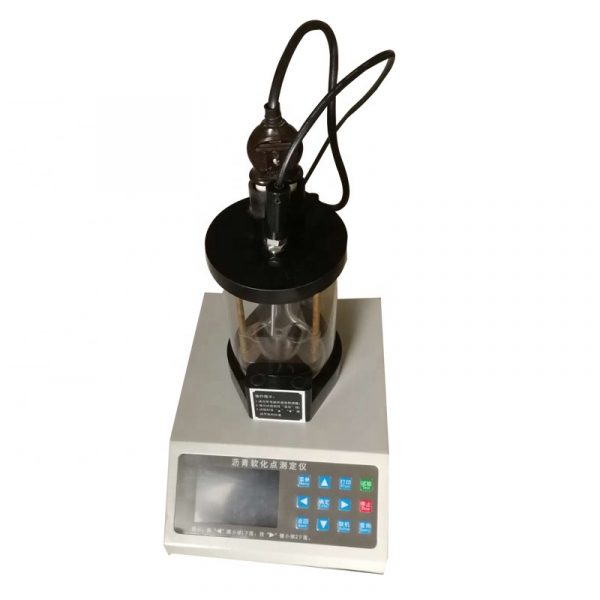

Automatic Asphalt Bitumen Vicat Soften Point Tester
Automatic Asphalt Bitumen Vicat Soften Point Tester聽聽聽refers to the temperature at which the asphalt specimen is softened by heat and sagging. It reflects asphalt viscosity, high temperature stability and temperature sensitivity.
- Description
- Inquiry
Automatic Asphalt Bitumen Vicat Soften Point Tester聽聽聽refers to the temperature at which the asphalt specimen is softened by heat and sagging. It reflects asphalt viscosity, high temperature stability and temperature sensitivity.
Feature:
It can automatically show measurement results after test. It is convenient, efficient, and reliable. It is the best instrument used to determine softening point of petroleum asphalt in the asphalt inspection laboratory.
Parameter:
| Temp. measurement range | room temperature ~100鈩 |
| Temp. measurement resolution | 0.1鈩 |
| Stirrer Speed | 聽continuous stirrer adjustable |
| Heating rate | automatically adjusted to 5.0卤0.5 鈩/min after three minutes |
| Display | LCD display, mini printer connector can be equipped |
| Power supply | 220V/50HZ |
| Heating power | 600W |
