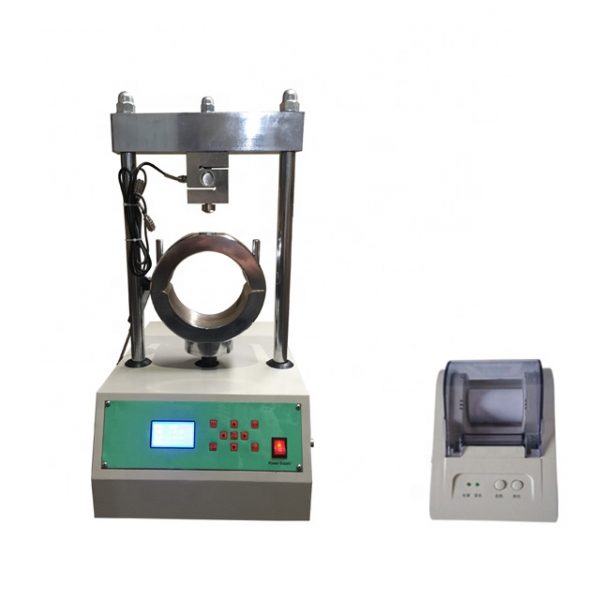

Automatic Asphalt Marshall Stability Compression Tester
The Marshall stability tester is suitable for measuring the thermal stability and resistance to plastic deformation of asphalt mixture-stability and flow value. Provide an accurate basis for the design of the composition ratio of the asphalt mixture.
- Description
- Inquiry
The Marshall stability tester is suitable for measuring the thermal stability and resistance to plastic deformation of asphalt mixture-stability and flow value. Provide an accurate basis for the design of the composition ratio of the asphalt mixture.
Parameter:
| Product Name | Â Automatic Asphalt Marshall Stability Compression Tester |
| The vertical ascent speed of the test instrument tray | 50±5mm/min |
| The maximum moving distance of the tester tray | 70mm |
| Working range of force value | 0-50.00kN |
| Working range of flow value | 0-20.00mm |
| Measuring accuracy of force measuring device | ±0.1kN |
| The measuring accuracy of the flow value measuring device | 0.01mm |
| Motor specifications | 220V, 0.37KW, 1440rpm, single-phase or customized |
| Maximum rated load | 50KN |
| Working conditions | Ambient temperature: 0℃-60℃ Relative temperature: <85% |
| Size | 470x590x780mm |
| Weight | 75KG |
